SPECIFICATIONS:
- Poles: 2-15
Voltage rating: AC 250V DC
- Current ration: AC, DC, 2A
- Withstand voltage: AC 800V/min
- Insulation resistance: 1000M
 min
- Temperature range: -25~+85 oC
- Applicable PC board thickness:
0.031"~ 0.063" (0.8-1.6mm)
- Contact resistance:
Initial value/10M max.
After environmental
- Testing/ 20M max.
|

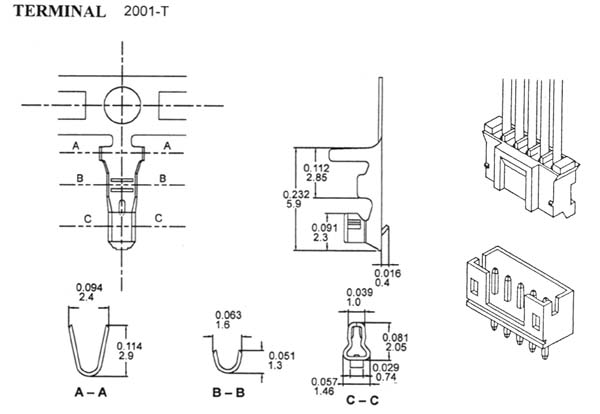

TERMINAL:
- Part No.:2001-T
- Applicable wires: AWG#22-28
- Finish: Tin/Plated
- Material: Phos. Bronze(Brass)
- Hardness: H
- Thickness: 0.2mm
- Q'ty: 10,000 pcs/roll
- Dimension
|

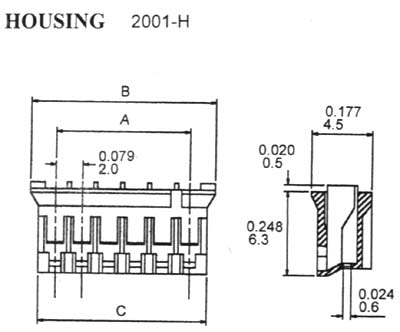

HOUSING:
- Part No.:2001-H
- Poles:2-15
- Material: Nylon 66, UL94V-0 Natural
- Q'ty: 1000 pcs/roll
- Dimension
|

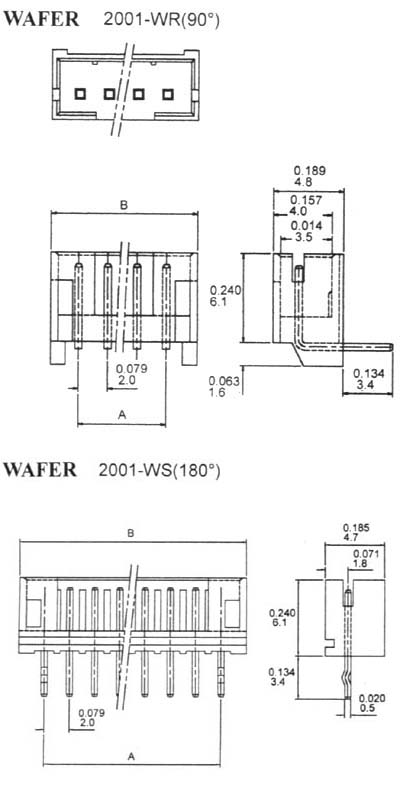

WAFER:
- Part No.:
2001-WS (180o), 2001-WR(90o)
- Poles:2-15
- Material:
Post: Brass, Tin/Plated
Base: Nylon 66, UL94V-0
- Q'ty:500,1000 pcs/roll
- Color:White
- Dimension
|
HOUSING:
| Poles |
Part No. |
Dimensions in. (mm) |
| A |
B |
C |
2 |
2001-H-2 |
0.079(2.0) |
0.228(5.8) |
0.181(4.6) |
3 |
2001-H-3 |
0.157(4.0) |
0.307(7.8) |
0.260(6.6) |
4 |
2001-H-4 |
0.236(6.0) |
0.386(9.8) |
0.339(8.6) |
5 |
2001-H-5 |
0.315(8.0) |
0.465(11.8) |
0.417(10.6) |
6 |
2001-H-6 |
0.394(10.0) |
0.543(13.8) |
0.496(12.6) |
7 |
2001-H-7 |
0.472(12.0) |
0.622(15.8) |
0.575(14.6) |
8 |
2001-H-8 |
0.551(14.0) |
0.701(17.8) |
0.654(16.6) |
9 |
2001-H-9 |
0.630(16.0) |
0.780(19.8) |
0.732(18.6) |
10 |
2001-H-10 |
0.709(18.0) |
0.858(21.8) |
0.811(20.6) |
11 |
2001-H-11 |
0.787(20.0) |
0.937(23.8) |
0.890(22.6) |
12 |
2001-H-12 |
0.886(22.0) |
1.016(25.8) |
0.969(24.6) |
13 |
2001-H-13 |
0.945(24.0) |
1.094(27.8) |
1.047(26.6) |
14 |
2001-H-14 |
1.024(26.0) |
1.173(29.8) |
1.126(28.6) |
15 |
2001-H-15 |
1.102(28.0) |
1.252(31.8) |
1.205(30.6) |
16 |
2001-H-16 |
1.181(30.0) |
1.331(33.8) |
1.284(32.6) |
|
WAFER:
| Poles |
Part No. |
Dimensions in. (mm) |
| Top
entry type |
Side
entry type |
A |
B |
| 2 |
2001-WS-2 |
2001-WR-2 |
0.079(2.0) |
0.236(6.0) |
| 3 |
2001-WS-3 |
2001-WR-3 |
0.157(4.0) |
0.315(8.0) |
| 4 |
2001-WS-4 |
2001-WR-4 |
0.236(6.0) |
0.394(10.0) |
| 5 |
2001-WS-5 |
2001-WR-5 |
0.315(8.0) |
0.472(12.0) |
| 6 |
2001-WS-6 |
2001-WR-6 |
0.394(10.0) |
0.551(14.0) |
| 7 |
2001-WS-7 |
2001-WR-7 |
0.472(12.0) |
0.630(16.0) |
| 8 |
2001-WS-8 |
2001-WR-8 |
0.551(14.0) |
0.709(18.0) |
| 9 |
2001-WS-9 |
2001-WR-9 |
0.630(16.0) |
0.787(20.0) |
| 10 |
2001-WS-10 |
2001-WR-10 |
0.709(18.0) |
0.886(22.0) |
| 11 |
2001-WS-11 |
2001-WR-11 |
0.787(20.0) |
0.945(24.0) |
| 12 |
2001-WS-12 |
2001-WR-12 |
0.866(22.0) |
1.024(26.0) |
| 13 |
2001-WS-13 |
2001-WR-13 |
0.945(24.0) |
1.102(28.0) |
| 14 |
2001-WS-14 |
2001-WR-14 |
1.024(26.0) |
1.181(30.0) |
| 15 |
2001-WS-15 |
2001-WR-15 |
1.102(28.0) |
1.260(32.0) |
| 16 |
2001-WS-16 |
2001-WR-16 |
1.181(30.0) |
1.338(34.0) |
|
