0.098" (2.5mm) Center Single Row (Double Row)Mini Latch Housing & Header

SPECIFICATIONS:
  • Poles: 2-20
    Voltage rating: AC 250V DC
  • Current ration: AC, DC, 2A
  • Withstand voltage: AC 650V/min
  • Insulation resistance: 1000M min
  • Temperature range: -25~+85 oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
  • Testing/ 20M max.

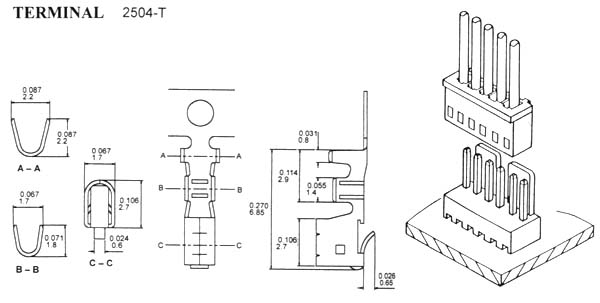

 TERMINAL:
  • Part No.: 2504-T
  • Applicable wires: AWG#22-28
  • Finish: Tin/Plated
  • Material: Phos.Bronze(Brass)
  • Hardness: H
  • Thickness: 0.2mm
  • Q'ty:8000pcs/roll
  • Dimension

　

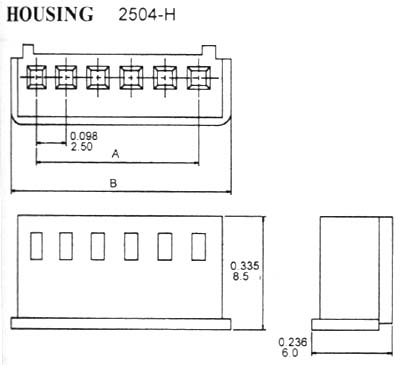

HOUSING:
  • Part No.:2504-H
  • Poles:2-20
  • Material: Nylon , UL94V-2
  • Q'ty: 500, 1000 pcs/roll
  • Dimension

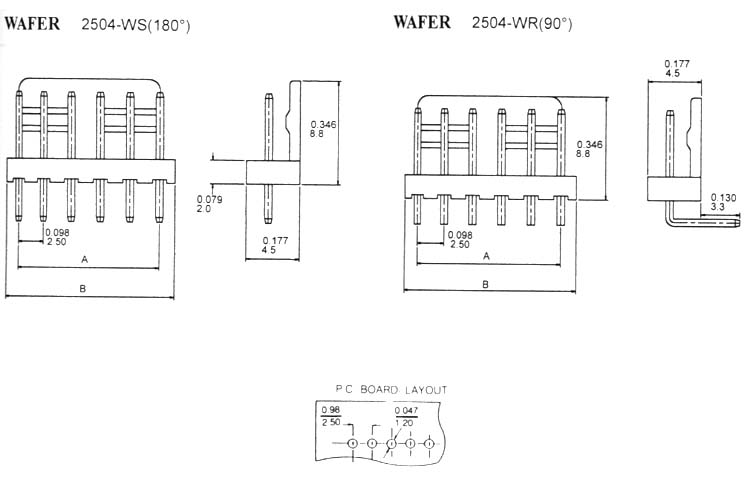

WAFER:
  • Part No.:2504-WS(180o),2504-WR(90o)
  • Poles:2-20
  • Material:
    Post: Brass, Tin/Plated
    Base: Nylon UL94V-2 Natural
  • Q'ty: 500, 1000 pcs/roll
  • Dimension
HOUSING:
Poles Part No.

Dimensions in. (mm)

 Material
A B
2 2504-H-2 0.098(2.5) 0.287(7.3)

Nylon 66
UL94V-2
3 2504-H-3 0.197(5.0) 0.385(9.8)
4 2504-H-4 0.295(7.5) 0.484(12.3)
5 2504-H-5 0.394(10.0) 0.582(14.8)
6 2504-H-6 0.492(12.5) 0.681(17.3)
7 2504-H-7 0.591(15.0) 0.77919.8)
8 2504-H-8 0.689(17.5) 0.877(22.3)
9 2504-H-9 0.787(20.0) 0.976(24.8)
10 2504-H-10 0.886(22.5) 1.074(27.3)
11 2504-H-11 0.984(25.0) 1.173(29.8)
12 2504-H-12 1.083(27.5) 1.271(32.2)
13 2504-H-13 0.181(30.0) 1.370(34.8)
14 2504-H-14 1.280(32.5) 1.468(37.3)
15 2504-H-15 1.378(35.0) 1.566(39.8)
16 2504-H-16 1.476(37.5) 1.665(42.3)
17 2504-H-17 1.575(40.0) 1.763(44.8)
18 2504-H-18 1.673(42.5) 1.862(47.3)
19 2504-H-19 1.772(45.0) 1.960(49.8)
20 2504-H-20 1.870(47.5) 2.059(52.3)
WAFER:
Poles Part No.

Dimensions in. (mm)
Top entry type Side entry type A B
2 2504-WS-2 2504-WR-2 0.098(2.5) 0.201(5.1)
3 2504-WS-3 2504-WR-3 0.197(5.0) 0.299(7.6)
4 2504-WS-4 2504-WR-4 0.295(7.5) 0.398(10.1)
5 2504-WS-5 2504-WR-5 0.394(10.0) 0.496(12.6)
6 2504-WS-6 2504-WR-6 0.492(12.5) 0.594(15.1)
7 2504-WS-7 2504-WR-7 0.591(15.0) 0.693(17.6)
8 2504-WS-8 2504-WR-8 0.689(17.5) 0.791(20.1)
9 2504-WS-9 2504-WR-9 0.787(20.0) 0.890(22.6)
10 2504-WS-10 2504-WR-10 0.886(22.5) 0.988(25.1)
11 2504-WS-11 2504-WR-11 0.984(25.0) 1.087(27.6)
12 2504-WS-12 2504-WR-12 1.083(27.5) 1.185(30.1)
13 2504-WS-13 2504-WR-13 0.181(30.0) 1.283(32.6)
14 2504-WS-14 2504-WR-14 1.280(32.5) 1.382(35.1)
15 2504-WS-15 2504-WR-15 1.378(35.0) 1.480(37.6)
16 2504-WS-16 2504-WR-16 1.476(37.5) 1.579(40.1)
17 2504-WS-17 2504-WR-17 1.575(40.0) 1.677(42.6)
18 2504-WS-18 2504-WR-18 1.673(42.5) 1.776(45.1)
19 2504-WS-19 2504-WR-19 1.772(45.0) 1.874(47.6)
20 2504-WS-20 2504-WR-20 1.870(47.5) 1.972(50.1)
