SPECIFICATIONS:
- Poles: 2-15
Voltage rating: AC 250V DC
- Current ration: AC, DC,
3A
- Withstand voltage: AC 800V/min
- Insulation resistance: 1000M
 min
- Temperature range: -25~+85 oC
- Applicable PC board thickness:
0.031"~ 0.063" (0.8-1.6mm)
- Contact resistance:
Initial value/10M max.
After environmental
- Testing/ 20M max.
|

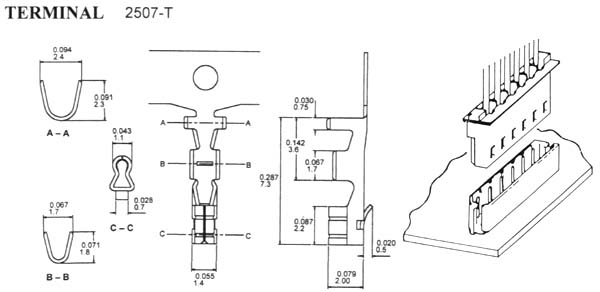

TERMINAL:
- Part No.: 2507-T
- Applicable wires: AWG#22-30
- Finish: Tin/Plated
- Material: Phos.Bronze(Brass)
- Hardness: H
- Thickness: 0.2mm
- Q'ty:10,000pcs/roll
- Dimension
|

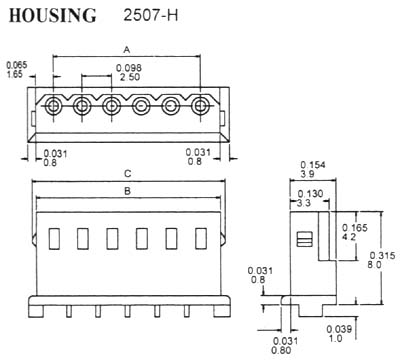

HOUSING:
- Part No.:2507-H
- Poles:2-15
- Material: Nylon 66 , UL94V-0
- Q'ty: 500, 1000 pcs/roll
- Dimension
|

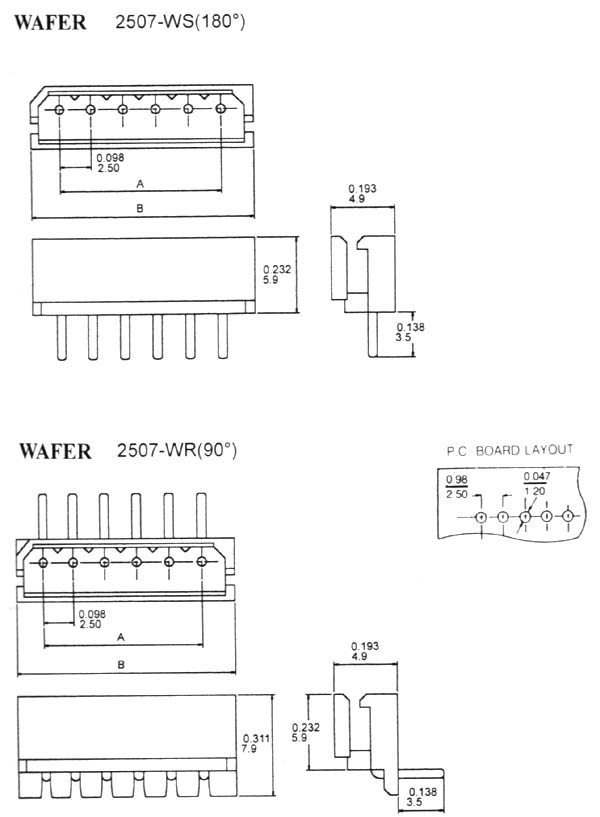

WAFER:
- Part No.:2507-WS(180o),2507-WR(90o)
- Poles:2-15
- Material:
Post: Brass, Tin/Plated
Base: Nylon 66, UL94V-0 Natural
- Q'ty: 500, 1000 pcs/roll
- Dimension
|
HOUSING:
| Poles |
Part No. |
Dimensions in. (mm) |
| A |
B |
C |
| 2 |
2507-H-2 |
0.098(2.5) |
0.228(5.8) |
0.260(6.6) |
| 3 |
2507-H-3 |
0.197(5.0) |
0.327(8.3) |
0.358(9.1) |
| 4 |
2507-H-4 |
0.295(7.5) |
0.425(10.8) |
0.457(11.6) |
| 5 |
2507-H-5 |
0.394(10.0) |
0.524(13.3) |
0.555(14.1) |
| 6 |
2507-H-6 |
0.492(12.5) |
0.622(15.8) |
0.654(16.6) |
| 7 |
2507-H-7 |
0.591(15.0) |
0.720(18.3) |
0.752(19.1) |
| 8 |
2507-H-8 |
0.689(17.5) |
0.819(20.8) |
0.850(21.6) |
| 9 |
2507-H-9 |
0.787(20.0) |
0.917(23.3) |
0.917(23.3) |
| 10 |
2507-H-10 |
0.886(22.5) |
1.012(25.7) |
1.012(25.7) |
| 11 |
2507-H-11 |
0.984(25.0) |
1.114(28.3) |
1.114(28.3) |
| 12 |
2507-H-12 |
1.083(27.5) |
1.213(30.8) |
1.213(30.8) |
| 13 |
2507-H-13 |
0.181(30.0) |
1.311(33.3) |
1.311(33.3) |
| 14 |
2507-H-14 |
1.280(32.5) |
1.409(35.8) |
1.409(35.8) |
| 15 |
2507-H-15 |
1.378(35.0) |
1.508(38.3) |
1.508(38.3) |
|
WAFER:
| Poles |
Part No. |
Dimensions in. (mm) |
| Top entry type |
Side entry type |
A |
B |
| 2 |
2507-WS-2 |
2507-WR-2 |
0.098(2.5) |
0.295(7.5) |
| 3 |
2507-WS-3 |
2507-WR-3 |
0.197(5.0) |
0.394(10.0) |
| 4 |
2507-WS-4 |
2507-WR-4 |
0.295(7.5) |
0.492(12.5) |
| 5 |
2507-WS-5 |
2507-WR-5 |
0.394(10.0) |
0.591(15.0) |
| 6 |
2507-WS-6 |
2507-WR-6 |
0.492(12.5) |
0.689(17.5) |
| 7 |
2507-WS-7 |
2507-WR-7 |
0.591(15.0) |
0.787(20.0) |
| 8 |
2507-WS-8 |
2507-WR-8 |
0.689(17.5) |
0.886(22.5) |
| 9 |
2507-WS-9 |
2507-WR-9 |
0.787(20.0) |
0.984(25.0) |
| 10 |
2507-WS-10 |
2507-WR-10 |
0.886(22.5) |
1.083(27.5) |
| 11 |
2507-WS-11 |
2507-WR-11 |
0.984(25.0) |
0.181(30.0) |
| 12 |
2507-WS-12 |
2507-WR-12 |
1.083(27.5) |
1.280(32.5) |
| 13 |
2507-WS-13 |
2507-WR-13 |
0.181(30.0) |
1.378(35.0) |
| 14 |
2507-WS-14 |
2507-WR-14 |
1.280(32.5) |
1.476(37.5) |
| 15 |
2507-WS-15 |
2507-WR-15 |
1.378(35.0) |
1.575(40.0) |
|
