0.100" (2.54mm) Center Crimp Terminal Housing

SPECIFICATIONS:
  • Poles:2-20
  • Voltage rating: AC 250V
  • Current ration: AC, DC, 3A
  • Withstand voltage: AC 1000V/min
  • Insulation resistance: 1000M min
  • Temperature range:
    -25    oC ~ +85oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
    Testing/ 20M max.

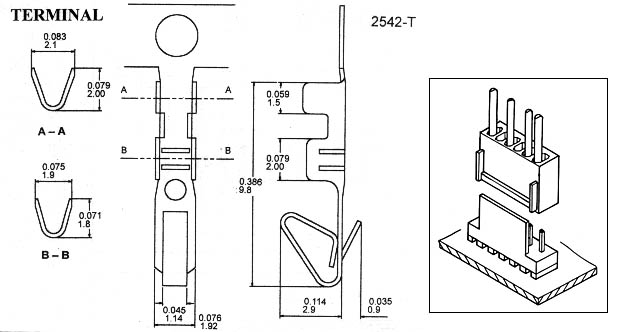

 TERMINAL:
  • Part No.: 2542-T
  • Applicable wires: AWG#22-28
  • Finish: Tin/Plated
  • Material: Phos. Bronze (Brass)
  • Hardness: SH
  • Thickness: 0.2mm
  • Q'ty:10,000pcs/roll
  • Dimension

　

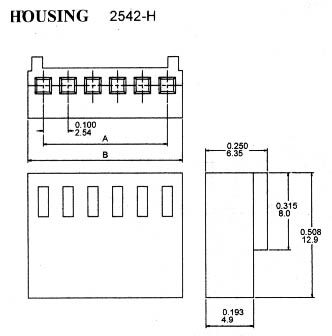

HOUSING:
  • Part No.:2542-H
  • Poles: 2-20
  • Material: Nylon , UL94V-2
  • Q'ty: 500, 1000 pcs/roll
  • Dimension

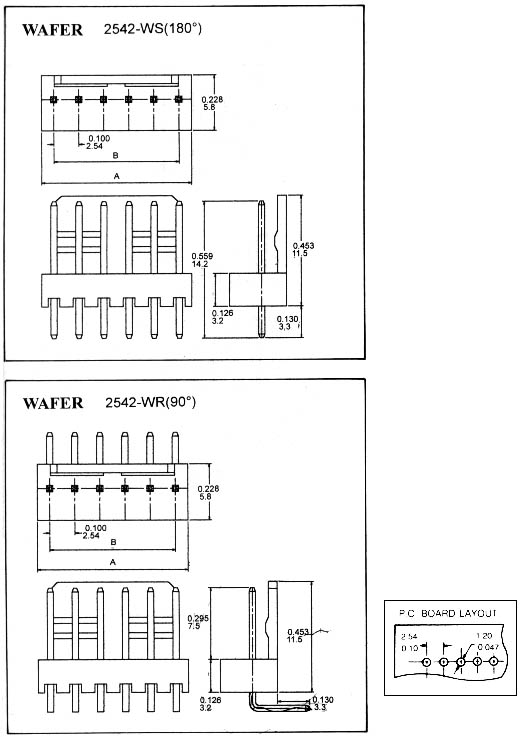

WAFER:
  • Part No.:
    2542-WS(180    o),2542-WR(90o)
  • Poles: 2-20
  • Material:
    Post: Brass, Gold/Plated
    Base: Nylon, UL94V-2
  • Q'ty: 500, 1000 pcs/roll
  • Dimension
HOUSING:
Poles Part No.

Dimensions In. (mm)

 Material
A B
2 2542-H-2 0.10(2.54) 0.22(5.68) Nylon 66

UL94V-2
3 2542-H-3 0.20(5.08) 0.32(8.22)
4 2542-H-4 0.30(7.62) 0.42(10.76)
5 2542-H-5 0.40(10.16) 0.52(13.30)
6 2542-H-6 0.50(12.70) 0.62(15.84)
7 2542-H-7 0.60(15.24) 0.72(18.38)
8 2542-H-8 0.70(17.78) 0.82(20.92)
9 2542-H-9 0.80(20.32) 0.92(23.46)
10 2542-H-10 0.90(22.86) 1.02(26.00)
11 2542-H-11 1.00(25.40) 1.12(28.54)
12 2542-H-12 1.10(27.94) 1.22(31.08)
13 2542-H-13 1.20(30.48) 1.32(33.62)
14 2542-H-14 1.30(33.02) 1.42(36.16)
15 2542-H-15 1.40(35.56) 1.52(38.70)
16 2542-H-16 1.50(38.10) 1.62(41.24)
17 2542-H-17 1.60(40.64) 1.72(43.78)
18 2542-H-18 1.70(43.18) 1.82(46.32)
19 2542-H-19 1.80(45.72) 1.92(48.86)
20 2542-H-20 1.90(48.26) 2.02(50.80)
WAFER:
Poles Part No.

Dimensions in. (mm)
Top entry type Side entry type A B
2 2542-WS-2 2542-WR-2 0.20(5.08) 0.10(2.54)
3 2542-WS-3 2542-WR-3 0.30(7.62) 0.20(5.08)
4 2542-WS-4 2542-WR-4 0.40(10.16) 0.30(7.62)
5 2542-WS-5 2542-WR-5 0.50(12.70) 0.40(10.16)
6 2542-WS-6 2542-WR-6 0.60(15.24) 0.50(12.70)
7 2542-WS-7 2542-WR-7 0.70(17.78) 0.60(15.24)
8 2542-WS-8 2542-WR-8 0.80(20.32) 0.70(17.78)
9 2542-WS-9 2542-WR-9 0.90(22.86) 0.80(20.32)
10 2542-WS-10 2542-WR-10 1.00(25.40) 0.90(22.86)
11 2542-WS-11 2542-WR-11 1.10(27.94) 1.00(25.40)
12 2542-WS-12 2542-WR-12 1.20(30.48) 1.10(27.94)
13 2542-WS-13 2542-WR-13 1.30(33.02) 1.20(30.48)
14 2542-WS-14 2542-WR-14 1.40(35.56) 1.30(33.02)
15 2542-WS-15 2542-WR-15 1.50(38.10) 1.40(35.56)
16 2542-WS-16 2542-WR-16 1.60(40.64) 1.50(38.10)
17 2542-WS-17 2542-WR-17 1.70(43.18) 1.60(40.64)
18 2542-WS-18 2542-WR-18 1.80(45.72) 1.70(43.18)
19 2542-WS-19 2542-WR-19 1.90(48.26) 1.80(45.72)
20 2542-WS-20 2542-WR-20 2.00(50.80) 1.90(48.26)
