0.098" (2.5mm) Diameter Crimp Terminal

SPECIFICATIONS:
  • Poles:2-15
  • Voltage rating: AC 250V
  • Current ration: AC, DC, 2A
  • Withstand voltage: AC 800V/min
  • Insulation resistance: 1000M min
  • Temperature range:
    -25    oC ~ +85oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
    Testing/ 20M max.

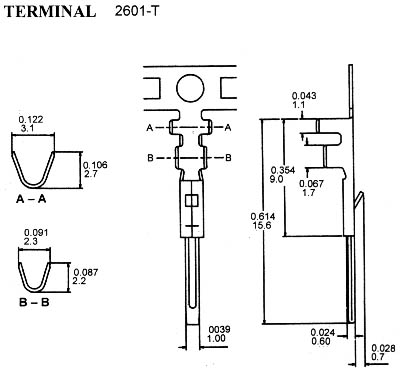

 TERMINAL:
  • Part No.: 2601-T
  • Applicable wires: AWG#22-28
  • Finish: Tin / Plated
  • Material: Brass
  • Hardness: H
  • Thickness: 0.25mm
  • Q'ty:10,000pcs/roll
  • Dimension

　

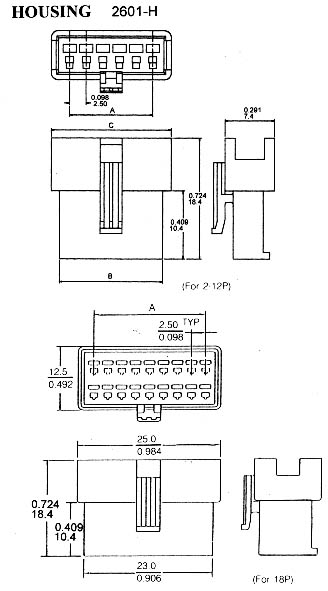

HOUSING:
  • Part No.:2601-H
  • Poles: 2-12 and 18
  • Material: Nylon, UL94V-0
  • Q'ty: 500, 1000 pcs/roll
  • Dimension
HOUSING:
Poles Part No.

Dimensions In. (mm)
A B C
2 2601-H-2 0.098(2.5) 0.217(5.5) 0.315(8.0)
3 2601-H-3 0.197(5.0) 0.315(8.0) 0.413(10.5)
4 2601-H-4 0.295(7.5) 0.402(10.2) 0.517(13.0)
5 2601-H-5 0.394(10.0) 0.512(13.0) 0.610(15.5)
6 2601-H-6 0.492(12.5) 0.610(15.5) 0.709(18.0)
7 2601-H-7 0.591(15.0) 0.709(18.0) 0.807(20.5)
8 2601-H-8 0.689(17.5) 0.807(20.5) 0.906(23.0)
9 2601-H-9 0.787(20.0) 0.906(23.0) 1.004(25.5)
10 2601-H-10 0.886(22.5) 1.004(25.5) 1.102(28.0)
11 2601-H-11 0.984(25.0) 1.102(28.0) 1.201(28.0)
12 2601-H-12 1.083(27.5) 1.201(30.5) 1.299(33.0)
18 2601-H-18 1.673(42.5) 1.791(45.5) 1.890(48.0)
