0.156" (3.96mm) Center Series

SPECIFICATIONS:
  • Poles:2-20
  • Voltage rating: AC 250V
  • Current ration: AC, DC, 7A
  • Withstand voltage: AC 1000V/min
  • Insulation resistance: 1000M min
  • Temperature range:
    -25    oC ~ +85oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
    Testing/ 20M max.
 TERMINAL:
  • Part No.: 3961-T
  • Applicable wires: AWG#22-30
  • Finish: Tin/Plated
  • Material: Brass
  • Hardness: SH
  • Thickness: 0.25mm
  • Q'ty:6000, 7000pcs/roll
  • Dimension

　

HOUSING:
  • Part No.:3961-H
  • Poles: 2-20
  • Material: Nylon 66 , UL94V-2
  • Q'ty: 500, 1000 pcs/roll
  • Dimension

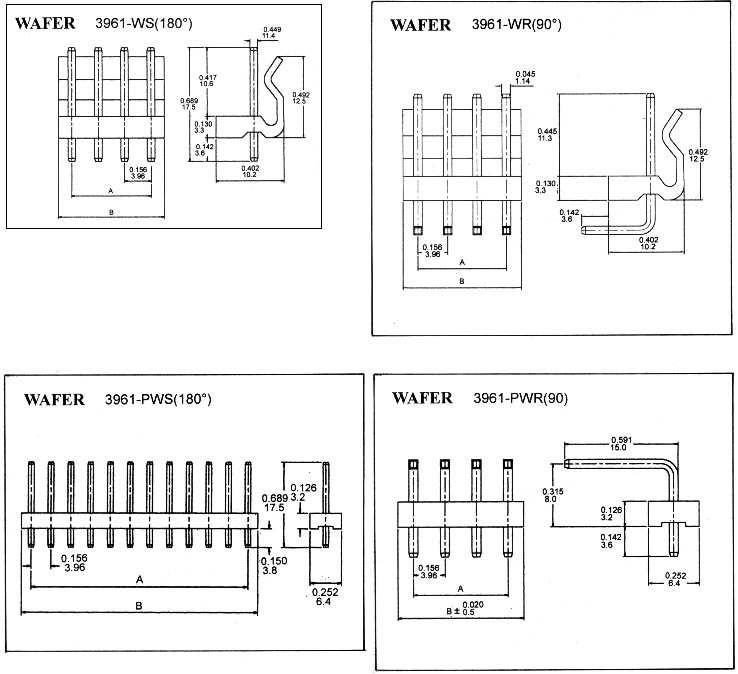

WAFER:
  • Part No.:
    3961-WS(180    o),3961-WR(90o)
    3961-PWS(180    o),3961-PWR(90o)
  • Poles: 2-20
  • Material:
    Post: Brass, Tin/Plated
    Base: Nylon 66, UL94V-2
  • Q'ty: 500, 1000 pcs/roll
  • Dimension

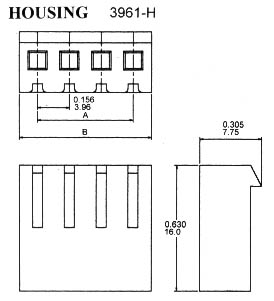

HOUSING:
Poles Part No.

Dimensions In. (mm)

 Material
A B
2 3961-H-2 0.156(3.96) 0.335(8.25) Nylon 66

UL94V-2
3 3961-H-3 0.312(7.92) 0.491(12.48)
4 3961-H-4 0.468(11.88) 0.646(16.44)
5 3961-H-5 0.624(14.84) 0.803(20.40)
6 3961-H-6 0.780(19.80) 0.959(24.36)
7 3961-H-7 0.935(23.76) 1.115(28.32)
8 3961-H-8 1.091(27.72) 1.427(36.24)
9 3961-H-9 1.247(31.68) 1.427(36.24)
10 3961-H-10 1.403(35.64) 1.583(40.20)
11 3961-H-11 1.559(39.60) 1.739(44.16)
12 3961-H-12 1.715(43.56) 1.894(48.12)
13 3961-H-13 1.871(47.52) 2.050(52.08)
14 3961-H-14 2.027(51.48) 2.207(56.04)
15 3961-H-15 2.183(55.44) 2.362(60.00)
16 3961-H-16 2.339(59.40) 2.518(63.96)
17 3961-H-17 2.494(63.36) 2.674(67.92)
18 3961-H-18 2.650(67.32) 2.830(71.88)
19 3961-H-19 2.806(71.28) 2.986(75.84)
20 3961-H-20 2.962(75.24) 3.142(79.80)
WAFER:
Poles Part No.

Dimensions in. (mm)
Top entry type Side entry type A B
2 3961-WS-2 3961-WR-2 0.156(3.96) 0.312(7.92)
3 3961-WS-3 3961-WR-3 0.312(7.92) 0.468(11.88)
4 3961-WS-4 3961-WR-4 0.468(11.88) 0.624(15.84)
5 3961-WS-5 3961-WR-5 0.624(15.84) 0.780(19.80)
6 3961-WS-6 3961-WR-6 0.780(19.80) 0.935(23.76)
7 3961-WS-7 3961-WR-7 0.935(23.76) 1.091(27.72)
8 3961-WS-8 3961-WR-8 1.091(27.72) 1.247(31.68)
9 3961-WS-9 3961-WR-9 1.247(31.68) 1.403(35.64)
10 3961-WS-10 3961-WR-10 1.403(35.64) 1.559(39.60)
11 3961-WS-11 3961-WR-11 1.559(39.60) 1.715(43.56)
12 3961-WS-12 3961-WR-12 1.715(43.56) 1.817(47.52)
13 3961-WS-13 3961-WR-13 1.871(47.52) 2.027(51.48)
14 3961-WS-14 3961-WR-14 2.027(51.48) 2.183(55.44)
15 3961-WS-15 3961-WR-15 2.183(55.44) 2.339(59.40)
16 3961-WS-16 3961-WR-16 2.339(59.40) 2.494(63.36)
17 3961-WS-17 3961-WR-17 2.494(63.36) 2.650(67.32)
18 3961-WS-18 3961-WR-18 2.650(67.32) 2.806(71.28)
19 3961-WS-19 3961-WR-19 2.806(71.28) 2.962(75.24)
20 3961-WS-20 3961-WR-20 2.962(75.24) 3.118(79.20)
Poles Part No.

Dimensions in. (mm)
Top entry type Side entry type A B
2 3961-PWS-2 3961-PWR-2 0.156(3.96) 0.312(7.92)
3 3961-PWS-3 3961-PWR-3 0.312(7.92) 0.468(11.88)
4 3961-PWS-4 3961-PWR-4 0.468(11.88) 0.624(15.84)
5 3961-PWS-5 3961-PWR-5 0.624(15.84) 0.780(19.80)
6 3961-PWS-6 3961-PWR-6 0.780(19.80) 0.935(23.76)
7 3961-PWS-7 3961-PWR-7 0.935(23.76) 1.091(27.72)
8 3961-PWS-8 3961-PWR-8 1.091(27.72) 1.247(31.68)
9 3961-PWS-9 3961-PWR-9 1.247(31.68) 1.403(35.64)
10 3961-PWS-10 3961-PWR-10 1.403(35.64) 1.559(39.60)
11 3961-PWS-11 3961-PWR-11 1.559(39.60) 1.715(43.56)
12 3961-PWS-12 3961-PWR-12 1.715(43.56) 1.817(47.52)
13 3961-PWS-13 3961-PWR-13 1.871(47.52) 2.027(51.48)
14 3961-PWS-14 3961-PWR-14 2.027(51.48) 2.183(55.44)
15 3961-PWS-15 3961-PWR-15 2.183(55.44) 2.339(59.40)
16 3961-PWS-16 3961-PWR-16 2.339(59.40) 2.494(63.36)
17 3961-PWS-17 3961-PWR-17 2.494(63.36) 2.650(67.32)
18 3961-PWS-18 3961-PWR-18 2.650(67.32) 2.806(71.28)
19 3961-PWS-19 3961-PWR-19 2.806(71.28) 2.962(75.24)
20 3961-PWS-20 3961-PWR-20 2.962(75.24) 3.118(79.20)
