SPECIFICATIONS:
- Poles:2-15
- Voltage rating: AC 250V
- Current ration: AC, DC,
1A
- Withstand voltage: AC 1000V/min
- Insulation resistance: 1000M
 min
- Temperature range:
-25oC
~ +85oC
- Applicable PC board thickness:
0.031"~ 0.063" (0.8-1.6mm)
- Contact resistance:
Initial value/10M max.
After environmental
Testing/ 20M max.
|

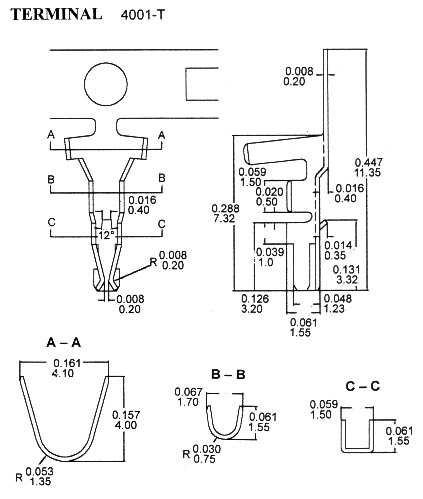

TERMINAL:
- Part No.: 4001-T
- Applicable wires: AWG#22-28
- Finish: Tin/Plated
- Material: Phos. Bronze
- Hardness: H
- Thickness: 0.2mm
- Q'ty:4000pcs/roll
- Dimension
|

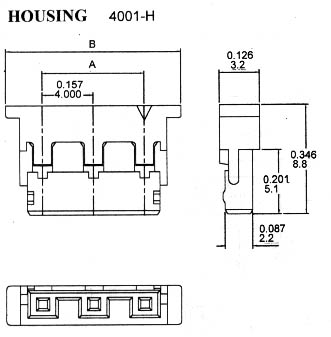

HOUSING:
- Part No.:4001-H
- Poles: 2-4
- Material: Nylon 66 , UL94V-0
- Q'ty: 1000 pcs/roll
- Dimension
|

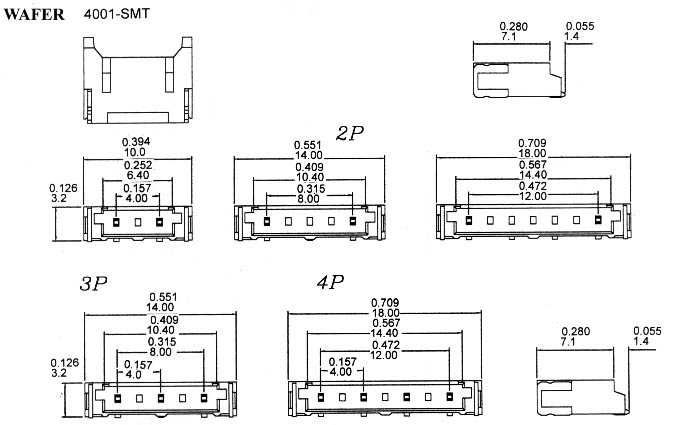

WAFER:
- Part No.: 4001-SMT
- Material:
Post: Cooper Alloy, Copper-Undercoated, Tin/Plated
Water: Polymaide Resin, UL94V-0
Solder Tab: Brass, Copper-Undercoated, Tin/Plated
- Dimension
|
HOUSING:
| Poles |
Part No. |
Dimensions
In. (mm) |
Material |
| A |
B |
| 2 |
4001-H-2 |
0.157(4.0) |
0.386(9.8) |
Nylon
66
UL94V-0 |
| 3 |
4001-H-3 |
0.315(8.0) |
0.543(13.8) |
| 4 |
4001-H-4 |
0.472(12.0) |
0.701(17.8) |
|
WAFER:
| Poles |
Part No. |
Dimensions
In. (mm) |
Material |
| A |
B |
| 2 |
4001-SMT-2 |
0.157(4.00) |
0.394(10.00) |
Nylon
66
UL94V-0 |
| 4001-SMT-2 |
0.315(8.00) |
0.551(14.00) |
| 4001-SMT-2 |
0.472(12.00) |
0.709(18.00) |
| 3 |
4001-SMT-3 |
0.315(8.00) |
0.551(14.00) |
| 4 |
4001-SMT-4 |
0.472(12.00) |
0.709(18.00) |
|
