0.1659" (4.2mm) Mini-Fit Series

SPECIFICATIONS:
  • Poles:2-24
  • Voltage rating: AC 600 RMS
  • Current ration: AC, DC, 6A
  • Withstand voltage: AC 1500V/min
  • Insulation resistance: 1000M min
  • Temperature range:
    -40
    oC ~ +105oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M
    max.
    After environmental

    Testing/ 20M max.

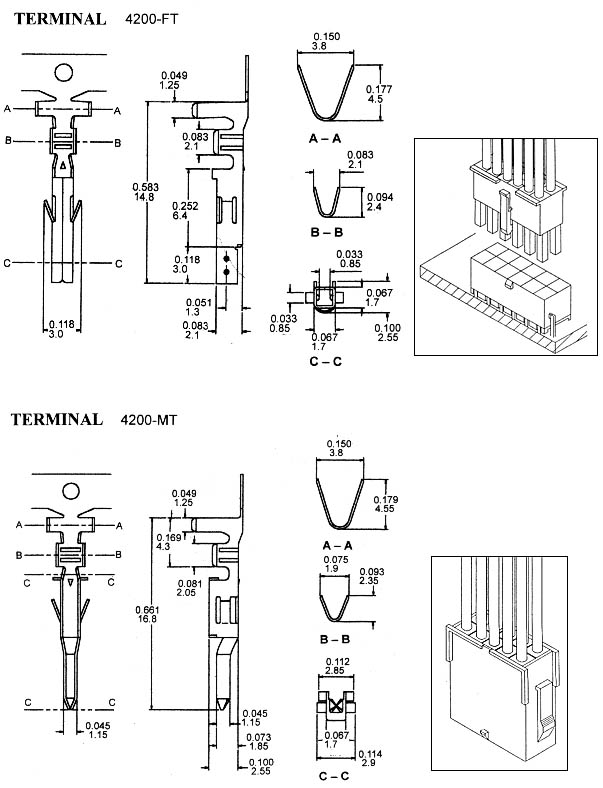

TERMINAL:
  • Part No.:
    4200-FT / 4200-MT
  • Applicable wires:
    AWG#14-22
  • Finish: Tin/Plated 40 "min.
  • Material: Phos. Bronze (Brass)
  • Hardness: H
  • Thickness: 0.2mm
  • Q'ty:
    4200-FT: 5000 pcs/roll
    4200-MT: 4000 pcs/roll
  • Dimension

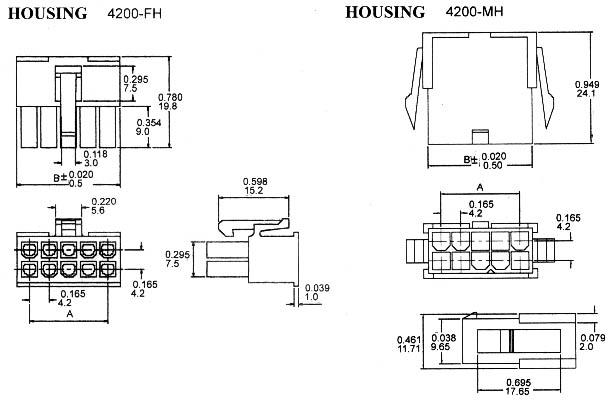

HOUSING:
  • Part No.:4200-FH / 4200-MH
  • Poles: 2-24
  • Material:
    4200-FH: Nylon 66 , UL94V-2 Natural
    4200-MH: Nylon 66 , UL94V-2
  • Q'ty:
    4200-FH: 500, 1000 pcs/roll
    4200-MH: 1000 pcs/roll
  • Dimension
WAFER:

FT and FH can apply to MT an MH,
WS and WR also

HOUSING:
Poles Part No.

Dimensions In. (mm)

A B
2 4200-FH-2
0.213(5.4)
4 4200-FH-4 0.165(4.2) 0.378(9.6)
6 4200-FH-6 0.331(8.4) 0.543(13.8)
8 4200-FH-8 0.496(12.6) 0.709(18.0)
10 4200-FH-10 0.661(16.8) 0.874(22.2)
12 4200-FH-12 0.827(21.0) 1.039(26.4)
14 4200-FH-14 0.992(25.2) 1.205(30.6)
16 4200-FH-16 1.160(29.4) 1.370(34.8)
18 4200-FH-18 1.323(33.6) 1.535(39.0)
20 4200-FH-20 1.488(37.8) 1.701(43.2)
22 4200-FH-22 1.654(42.0) 1.866(47.4)
24 4200-FH-24 1.819(46.2) 2.031(51.6)
Poles Part No.

Dimensions In. (mm)

A B
2 4200-MH-2
0.213(5.4)
4 4200-MH-4 0.165(4.2) 0.378(9.6)
6 4200-MH-6 0.331(8.4) 0.543(13.8)
8 4200-MH-8 0.496(12.6) 0.709(18.0)
10 4200-MH-10 0.661(16.8) 0.874(22.2)
12 4200-MH-12 0.827(21.0) 1.039(26.4)
14 4200-MH-14 0.992(25.2) 1.205(30.6)
16 4200-MH-16 1.160(29.4) 1.370(34.8)
18 4200-MH-18 1.323(33.6) 1.535(39.0)
20 4200-MH-20 1.488(37.8) 1.701(43.2)
22 4200-MH-22 1.654(42.0) 1.866(47.4)
24 4200-MH-24 1.819(46.2) 2.031(51.6)
