0.200" (5.08mm) Center Housing

SPECIFICATIONS:
  • Poles:2-20
  • Voltage rating: AC 250V
  • Current ration: AC, DC, 5A
  • Withstand voltage: AC 1500V/min
  • Insulation resistance: 1000M min
  • Temperature range:
    -25    oC ~ +85oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
    Testing/ 20M max.

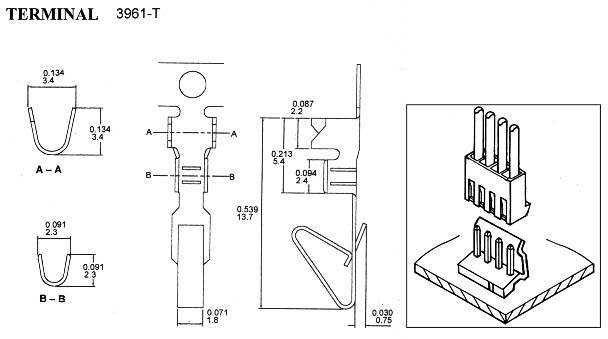

 TERMINAL:
  • Part No.: 3961-T
  • Applicable wires: AWG#22-30
  • Finish: Tin/Plated
  • Material: Brass
  • Hardness: SH
  • Thickness: 0.25mm
  • Q'ty:6000, 7000 pcs/roll
  • Dimension

　

HOUSING:
  • Part No.:5081-H
  • Poles: 2-15
  • Material: Nylon 66, UL94V-0
  • Q'ty: 500, 1000 pcs/roll
  • Dimension

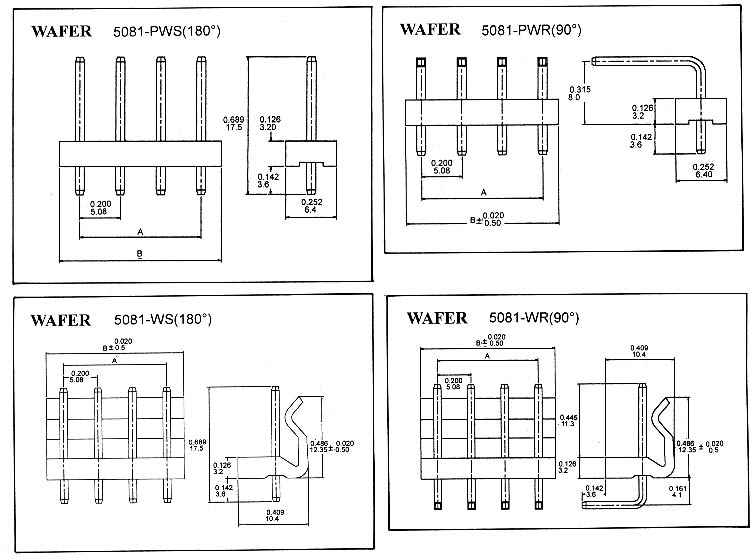

WAFER:
  • Part No.:
    5081-WS(180    o), 5081-WR(90o)
    5081-PWS(180    o), 5081-PWR(90o)
  • Poles: 2-15
  • Material:
    Post: Brass, Tin/Plated
    Base: Nylon, UL94V-2
  • Q'ty: 500, 1000 pcs/roll
  • Dimension
HOUSING:
Poles Part No.

Dimensions In. (mm)

 Material
A B
2 5081-H-2 0.20(5.08) 0.40(10.16) Nylon 66

UL94V-2
3 5081-H-3 0.40(10.16) 0.60(15.24)
4 5081-H-4 0.60(15.24) 0.80(20.32)
5 5081-H-5 0.80(20.32) 1.00(25.40)
6 5081-H-6 1.00(25.40) 1.20(30.48)
7 5081-H-7 1.20(30.48) 1.40(35.56)
8 5081-H-8 1.40(35.56) 1.60(40.64)
9 5081-H-9 1.60(40.64) 1.80(45.72)
10 5081-H-10 1.80(45.72) 2.00(50.80)
11 5081-H-11 2.00(50.80) 2.20(55.88)
12 5081-H-12 2.20(55.88) 2.40(60.96)
13 5081-H-13 2.40(60.96) 2.60(66.04)
14 5081-H-14 2.60(66.04) 2.80(71.12)
15 5081-H-15 2.80(71.12) 3.00(76.20)
WAFER:
Poles Part No.

Dimensions in. (mm)
Top entry type Side entry type A B
2 5081-PWS-2 5081-PWR-2 0.20(5.08) 0.40(10.16)
3 5081-PWS-3 5081-PWR-3 0.40(10.16) 0.60(15.24)
4 5081-PWS-4 5081-PWR-4 0.60(15.24) 0.80(20.32)
5 5081-PWS-5 5081-PWR-5 0.80(20.32) 1.00(25.40)
6 5081-PWS-6 5081-PWR-6 1.00(25.40) 1.20(30.48)
7 5081-PWS-7 5081-PWR-7 1.20(30.48) 1.40(35.56)
8 5081-PWS-8 5081-PWR-8 1.40(35.56) 1.60(40.64)
9 5081-PWS-9 5081-PWR-9 1.60(40.64) 1.80(45.72)
10 5081-PWS-10 5081-PWR-10 1.80(45.72) 2.00(50.80)
11 5081-PWS-11 5081-PWR-11 2.00(50.80) 2.20(55.88)
12 5081-PWS-12 5081-PWR-12 2.20(55.88) 2.40(60.96)
13 5081-PWS-13 5081-PWR-13 2.40(60.96) 2.60(66.04)
14 5081-PWS-14 5081-PWR-14 2.60(66.04) 2.80(71.12)
15 5081-PWS-15 5081-PWR-15 2.80(71.12) 3.00(76.20)
Poles Part No.

Dimensions in. (mm)
Top entry type Side entry type A B
2 5081-WS-2 5081-WR-2 0.20(5.08) 0.40(10.16)
3 5081-WS-3 5081-WR-3 0.40(10.16) 0.60(15.24)
4 5081-WS-4 5081-WR-4 0.60(15.24) 0.80(20.32)
5 5081-WS-5 5081-WR-5 0.80(20.32) 1.00(25.40)
6 5081-WS-6 5081-WR-6 1.00(25.40) 1.20(30.48)
7 5081-WS-7 5081-WR-7 1.20(30.48) 1.40(35.56)
8 5081-WS-8 5081-WR-8 1.40(35.56) 1.60(40.64)
9 5081-WS-9 5081-WR-9 1.60(40.64) 1.80(45.72)
10 5081-WS-10 5081-WR-10 1.80(45.72) 2.00(50.80)
11 5081-WS-11 5081-WR-11 2.00(50.80) 2.20(55.88)
12 5081-WS-12 5081-WR-12 2.20(55.88) 2.40(60.96)
13 5081-WS-13 5081-WR-13 2.40(60.96) 2.60(66.04)
14 5081-WS-14 5081-WR-14 2.60(66.04) 2.80(71.12)
15 5081-WS-15 5081-WR-15 2.80(71.12) 3.00(76.20)
