SPECIFICATIONS:
- Poles: 2-13
- Voltage rating: AC
250V DC
- Current ration: AC,
DC, 1A
- Withstand voltage: AC
1000V/min
- Insulation
resistance: 1000M
 min
- Temperature range:
-25~+85 oC
- Applicable PC board
thickness:
0.031"~ 0.063" (0.8-1.6mm)
- Contact resistance:
Initial value/10M max.
After environmental
- Testing/ 20M max.
|

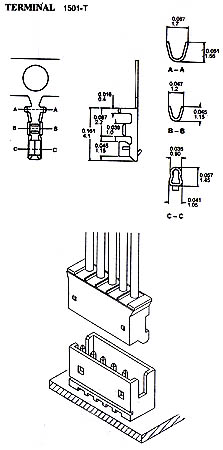

TERMINAL:
- Part No.:1501-T
- Applicable wires: AWG#26-30
- Finish: Tin/Plated
- Material: Phos. Bronze
- Hardness: SH
- Thickness: 0.2mm
- Q'ty: 10,000 pcs/roll
- Dimension
|
HOUSING:
- Part No.:1501-H
- Poles: 2-13
- Material: Nylon 66, UL94V-0
- Q'ty: 10,000 pcs/roll
- Dimension
|
WAFER:
- Part No.:1501-WS (180o),
1501-WR (90o)
- Poles: 2-13
- Material:
Post: Brass, Tin/Plated
Base: Nylon 66, UL94V-0
- Q'ty: 1000 pcs/roll
- Dimension
|

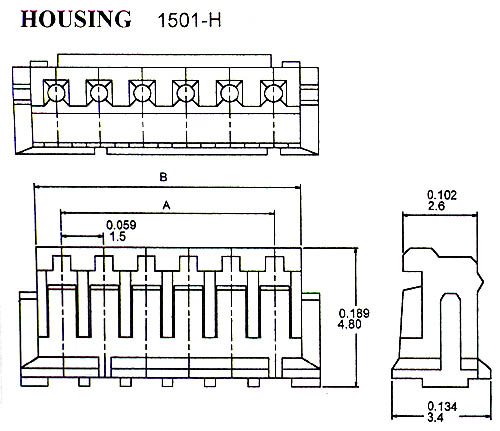

HOUSING:
| Poles |
Part
No. |
Dimensions in.
(mm) |
| A |
B |
|
2 |
1501-H-2 |
0.059(1.5) |
0.130(3.3) |
|
3 |
1501-H-3 |
0.118(3.0) |
0.189(4.8) |
|
4 |
1501-H-4 |
0.177(4.5) |
0.248(6.3) |
|
5 |
1501-H-5 |
0.236(6.0) |
0.307(7.8) |
|
6 |
1501-H-6 |
0.295(7.5) |
0.366(10.5) |
|
7 |
1501-H-7 |
0.354(9.0) |
0.425(10.8) |
|
8 |
1501-H-8 |
0.413(10.5) |
0.484(12.3) |
|
9 |
1501-H-9 |
0.472(12.0) |
0.543(13.8) |
|
10 |
1501-H-10 |
0.531(13.5) |
0.602(15.3) |
|
11 |
1501-H-11 |
0.590(15.0) |
0.661(16.8) |
|
12 |
1501-H-12 |
0.650(16.5) |
0.720(18.3) |
|
13 |
1501-H-13 |
0.709(18.0) |
0.780(19.8) |
|

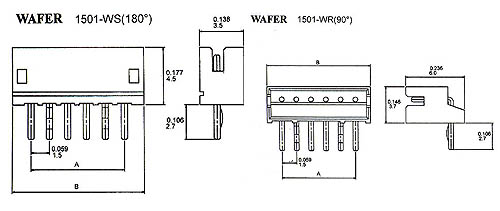

WAFER:
| Poles |
Part
No. |
Dimensions in.
(mm) |
| Top
Entry Type |
Side
Entry Type |
A |
B |
|
2 |
1501-WS-2 |
1501-WR-2 |
0.059(1.5) |
0.179(4.55) |
|
3 |
1501-WS-3 |
1501-WR-3 |
0.118(3.0) |
0.238(6.05) |
|
4 |
1501-WS-4 |
1501-WR-4 |
0.177(4.5) |
0.297(7.55) |
|
5 |
1501-WS-5 |
1501-WR-5 |
0.236(6.0) |
0.356(9.05) |
|
6 |
1501-WS-6 |
1501-WR-6 |
0.295(7.5) |
0.415(10.55) |
|
7 |
1501-WS-7 |
1501-WR-7 |
0.354(9.0) |
0.474(12.05) |
|
8 |
1501-WS-8 |
1501-WR-8 |
0.413(10.5) |
0.533(13.55) |
|
9 |
1501-WS-9 |
1501-WR-9 |
0.472(12.0) |
0.593(15.05) |
|
10 |
1501-WS-10 |
1501-WR-10 |
0.531(13.5) |
0.652(16.55) |
|
11 |
1501-WS-11 |
1501-WR-11 |
0.590(15.0) |
0.711(18.05) |
|
12 |
1501-WS-12 |
1501-WR-12 |
0.650(16.5) |
0.770(19.55) |
|
13 |
1501-WS-13 |
1501-WR-13 |
0.709(18.0) |
0.829(21.05) |
|
