SCSI Cable


The fullshielded connector contain two rows of presion formed, insert molded contacts on 0.8mm centerlines. Contacts incorporate gold over nickle to maintain high quality signals even in harsh environments. Stubbing is eliminated by imbedding the contact tips in the plastic housing.







  • High density, low profile, 0.8mm connectors.
  • IDC terminators
  • #30 AWG shielded differential pair cable.
  • Jackscrews or Squeeze-to-release latches.
  • Fully shielded interconnect.
  • #30 AWG solid or stranded twisted pair cable.
  • Integral cable braid termination and strain relief.
  • Available in 36, 50 and 68 position plug connectors.



VHDCI 0.88MM SCSI CABLE



CM-5201-03 CEN.68M 0.8MM TO HP CEN50M
CM-5211-03 CEN.68M 0.8MM TO HP DSUB50M
CM-5221-03 CEN.68M 0.8MM TO HP DSUB68M
CM-5231-03 CEN.68M 0.8MM TO CEN.68M 0.8MM



LVD FLAT CABLE

SPI also defines a third of electrical interface called LVD (Low Voltage Differential). This is a low power version of the Differential interface with a lower price tag which hopefully will make it more attractive. The distance limitation of LVD is 12 meters.

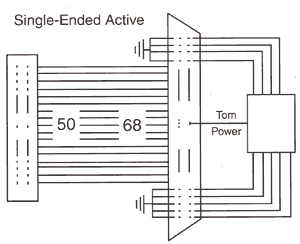

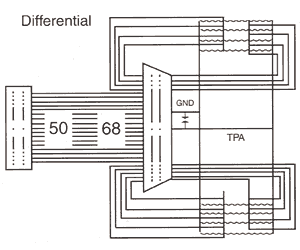

Schematics
