SPECIFICATIONS:
- Poles: 2-15
Voltage rating: AC 250V DC
- Current ration: AC, DC, 2A
- Withstand voltage: AC 800V/min
- Insulation resistance: 1000M
 min
- Temperature range: -25~+85 oC
- Applicable PC board thickness:
0.031"~ 0.063" (0.8-1.6mm)
- Contact resistance:
Initial value/10M max.
After environmental
- Testing/ 20M max.
|

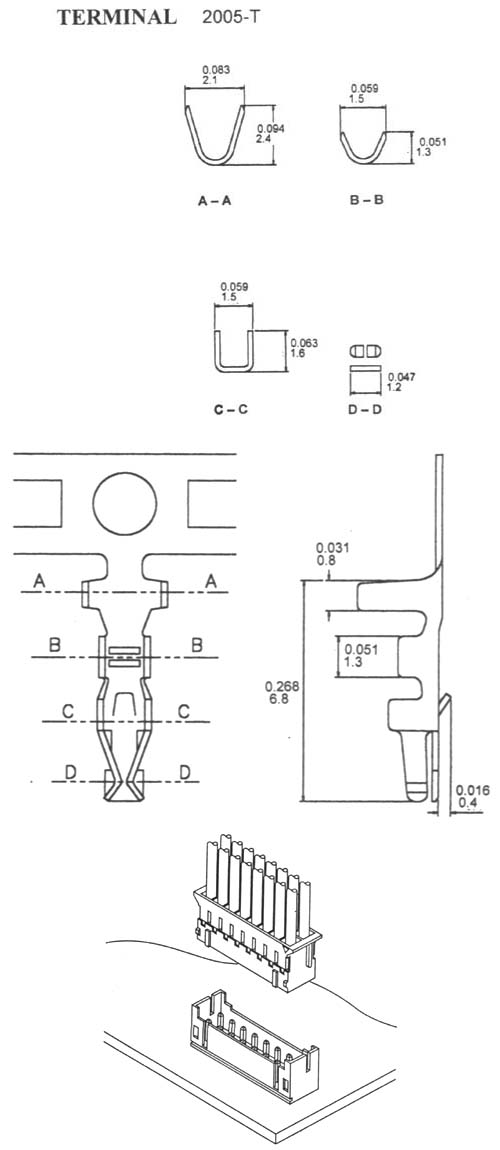

TERMINAL:
- Part No.:2005-T
- Applicable wires: AWG#22-28
- Finish: Tin/Plated
- Material: Phos. Bronze(Brass)
- Hardness: H
- Thickness: 0.2mm
- Q'ty: 6,000 pcs/roll
- Dimension
|

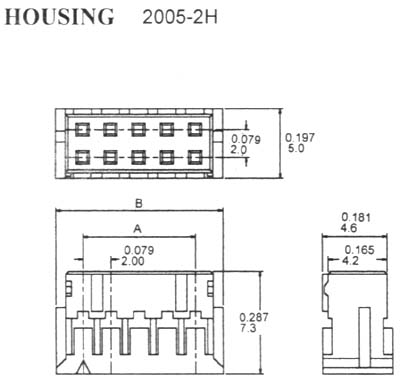

HOUSING:
- Part No.:2005-2H
- Poles:6-50
- Material: Nylon 66, UL94V-0
- Q'ty: 1000 pcs/roll
- Color: White
- Dimension
|

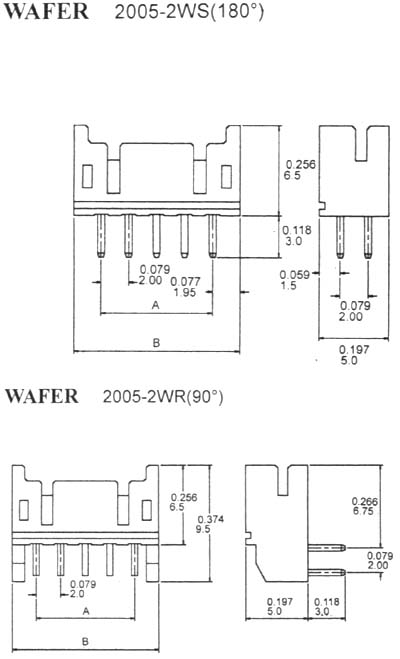

WAFER:
- Part No.:2005-2WS(180o),2005-2WR(90o)
- Poles:6-50
- Material:
Post:Phos. Bronze, Tin/Plated
Base: Nylon 66, UL94V-0 FR-50
- Q'ty: 1000 pcs/roll
- Color: Cream
- Dimension
|
HOUSING:
| Poles |
Part No. |
Dimensions in. (mm) |
Material |
| A |
B |
| 6 |
2005-2H-6 |
0.157(4.0) |
0.311(7.9) |
Nylon
66
UL94V-0 Natural |
| 8 |
2005-2H-8 |
0.236(6.0) |
0.389(9.9) |
| 10 |
2005-2H-10 |
0.315(8.0) |
0.469(11.9) |
| 12 |
2005-2H-12 |
0.394(10.0) |
0.547(13.9) |
| 14 |
2005-2H-14 |
0.472(12.0) |
0.626(15.9) |
| 16 |
2005-2H-16 |
0.551(14.0) |
0.705(17.9) |
| 18 |
2005-2H-18 |
0.630(16.0) |
0.783(19.9) |
| 20 |
2005-2H-20 |
0.709(18.0) |
0.862(21.9) |
| 22 |
2005-2H-22 |
0.787(20.0) |
0.941(23.9) |
| 24 |
2005-2H-24 |
0.866(22.0) |
1.020(25.9) |
| 26 |
2005-2H-26 |
0.945(24.0) |
1.098(27.9) |
| 28 |
2005-2H-28 |
1.024(26.0) |
1.177(29.9) |
| 30 |
2005-2H-30 |
1.102(28.0) |
1.256(31.9) |
| 32 |
2005-2H-32 |
1.181(30.0) |
1.335(33.9) |
| 34 |
2005-2H-34 |
1.260(32.0) |
1.413(35.9) |
| 36 |
2005-2H-36 |
1.399(34.0) |
1.492(37.9) |
| 38 |
2005-2H-38 |
1.417(36.0) |
1.570(39.9) |
| 40 |
2005-2H-40 |
1.496(38.0) |
1.649(41.9) |
| 42 |
2005-2H-42 |
1.574(40.0) |
1.728(43.9) |
| 44 |
2005-2H-44 |
1.653(42.0) |
1.807(45.9) |
| 46 |
2005-2H-46 |
1.732(44.0) |
1.886(47.9) |
| 48 |
2005-2H-48 |
1.811(46.0) |
1.965(49.9) |
| 50 |
2005-2H-50 |
1.889(48.0) |
2.043(51.9) |
|
HOUSING:
| Poles |
Part No. |
Dimensions in. (mm) |
Material |
| Top entry type |
Side entry type |
A |
B |
| 6 |
2005-2WS-6 |
2005-2WR-6 |
0.157(4.0) |
0.311(7.9) |
Nylon
66
UL94V-0 Natural |
| 8 |
2005-2WS-8 |
2005-2WR-8 |
0.236(6.0) |
0.389(9.9) |
| 10 |
2005-2WS-10 |
2005-2WR-10 |
0.315(8.0) |
0.469(11.9) |
| 12 |
2005-2WS-12 |
2005-2WR-12 |
0.394(10.0) |
0.547(13.9) |
| 14 |
2005-2WS-14 |
2005-2WR-14 |
0.472(12.0) |
0.626(15.9) |
| 16 |
2005-2WS-16 |
2005-2WR-16 |
0.551(14.0) |
0.705(17.9) |
| 18 |
2005-2WS-18 |
2005-2WR-18 |
0.630(16.0) |
0.783(19.9) |
| 20 |
2005-2WS-20 |
2005-2WR-20 |
0.709(18.0) |
0.862(21.9) |
| 22 |
2005-2WS-22 |
2005-2WR-22 |
0.787(20.0) |
0.941(23.9) |
| 24 |
2005-2WS-24 |
2005-2WR-24 |
0.866(22.0) |
1.020(25.9) |
| 26 |
2005-2WS-26 |
2005-2WR-26 |
0.945(24.0) |
1.098(27.9) |
| 28 |
2005-2WS-28 |
2005-2WR-28 |
1.024(26.0) |
1.177(29.9) |
| 30 |
2005-2WS-30 |
2005-2WR-30 |
1.102(28.0) |
1.256(31.9) |
| 32 |
2005-2WS-32 |
2005-2WR-32 |
1.181(30.0) |
1.335(33.9) |
| 34 |
2005-2WS-34 |
2005-2WR-34 |
1.260(32.0) |
1.413(35.9) |
| 36 |
2005-2WS-36 |
2005-2WR-36 |
1.399(34.0) |
1.492(37.9) |
| 38 |
2005-2WS-38 |
2005-2WR-38 |
1.417(36.0) |
1.570(39.9) |
| 40 |
2005-2WS-40 |
2005-2WR-40 |
1.496(38.0) |
1.649(41.9) |
| 42 |
2005-2WS-42 |
2005-2WR-42 |
1.574(40.0) |
1.728(43.9) |
| 44 |
2005-2WS-44 |
2005-2WR-44 |
1.653(42.0) |
1.807(45.9) |
| 46 |
2005-2WS-46 |
2005-2WR-46 |
1.732(44.0) |
1.886(47.9) |
| 48 |
2005-2WS-48 |
2005-2WR-48 |
1.811(46.0) |
1.965(49.9) |
| 50 |
2005-2WS-50 |
2005-2WR-50 |
1.889(48.0) |
2.043(51.9) |
|
