SPECIFICATIONS:
- Poles: 2-15
Voltage rating: AC 250V DC
- Current ration: AC, DC, 2A
- Withstand voltage: AC 800V/min
- Insulation resistance: 1000M
 min
- Temperature range: -25~+85 oC
- Applicable PC board thickness:
0.031"~ 0.063" (0.8-1.6mm)
- Contact resistance:
Initial value/10M max.
After environmental
- Testing/ 20M max.
|

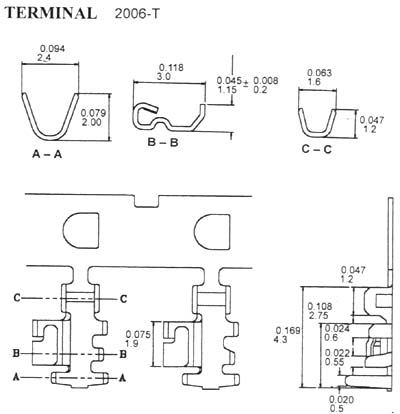

TERMINAL:
- Part No.:2006-T
- Applicable wires: AWG#22-28
- Finish: Tin/Plated
- Material: Phos. Bronze(Brass)
- Hardness: H
- Thickness: 0.2mm
- Dimension
|

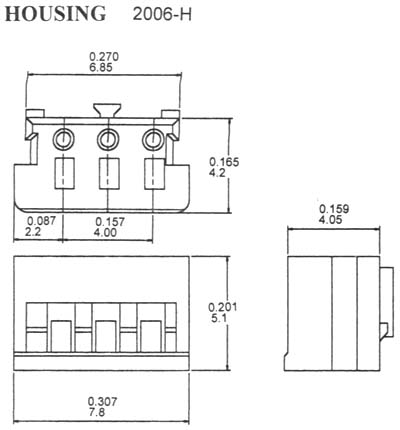

HOUSING:
- Part No.:2006-H
- Poles:2-15
- Material: Nylon 66, UL94V-0
- Q'ty: 1000 pcs/roll
- Dimension
|

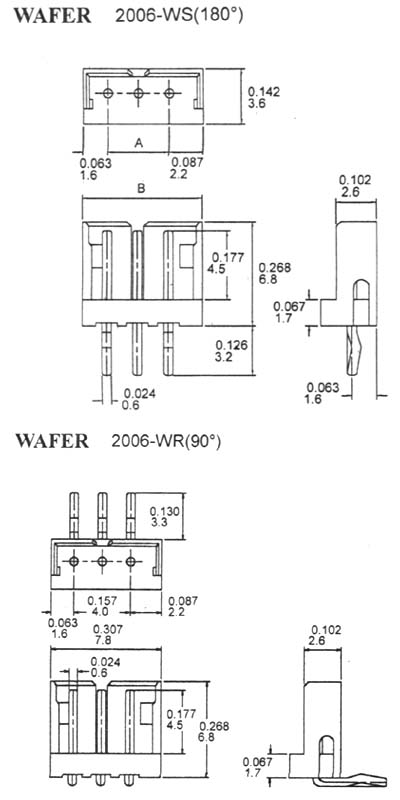

WAFER:
- Part No.:2006-WS(180o),2006-WR(90o)
- Poles:2-15
- Material:
Post:Phos. Brass, Tin/Plated
Base: Nylon 66, UL94V-0 FR-50
- Q'ty: 1000 pcs/roll
- Color: White
- Dimension

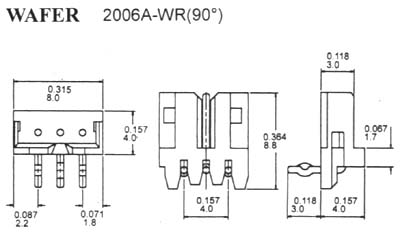

- Part No.:2006A-WR(90o)
- Poles:3
- Material:
Post: Brass, Tin/Plated
Base: Nylon 66, UL94V-0
- Q'ty: 1000 pcs/roll
- Dimension
|
HOUSING:
| Poles |
Part No. |
Dimensions in. (mm) |
Material |
| A |
B |
| 2 |
2006-H-2 |
0.193(4.9) |
0.228(5.8) |
Post:
Brass Tin/Plated
Base:Nylon 66
UL94V-0 Natural |
| 3 |
2006-H-3 |
0.2727(6.9) |
0.307(7.8) |
| 4 |
2006-H-4 |
0.350(8.9) |
0.386(9.8) |
| 5 |
2006-H-5 |
0.429(10.9) |
0.465(11.8) |
| 6 |
2006-H-6 |
0.508(12.9) |
0.543(13.8) |
| 7 |
2006-H-7 |
0.587(14.9) |
0.622(15.8) |
| 8 |
2006-H-8 |
0.665(16.9) |
0.701(17.8) |
| 9 |
2006-H-9 |
0.744(18.9) |
0.780(19.8) |
| 10 |
2006-H-10 |
0.823(20.9) |
0.858(21.8) |
| 11 |
2006-H-11 |
0.902(22.9) |
0.937(23.8) |
| 12 |
2006-H-12 |
0.980(24.9) |
1.016(25.8) |
| 13 |
2006-H-13 |
1.059(26.9) |
1.094(27.8) |
| 14 |
2006-H-14 |
1.138(28.9) |
1.173(29.8) |
| 15 |
2006-H-15 |
1.217(30.9) |
1.252(31.8) |
|
HOUSING:
| Poles |
Part No. |
Dimensions in. (mm) |
| Top entry type |
Side entry type |
A |
B |
| 2 |
2006-WS-2 |
2006-WR-2 |
0.079(2.0) |
0.228(5.8) |
| 3 |
2006-WS-3 |
2006-WR-3 |
0.157(4.0) |
0.307(7.8) |
| 4 |
2006-WS-4 |
2006-WR-4 |
0.236(6.0) |
0.386(9.8) |
| 5 |
2006-WS-5 |
2006-WR-5 |
0.315(8.0) |
0.465(11.8) |
| 6 |
2006-WS-6 |
2006-WR-6 |
0.394(10.0) |
0.543(13.8) |
| 7 |
2006-WS-7 |
2006-WR-7 |
0.472(12.0) |
0.622(15.8) |
| 8 |
2006-WS-8 |
2006-WR-8 |
0.551(14.0) |
0.701(17.8) |
| 9 |
2006-WS-9 |
2006-WR-9 |
0.630(16.0) |
0.780(19.8) |
| 10 |
2006-WS-10 |
2006-WR-10 |
0.709(18.0) |
0.858(21.8) |
| 11 |
2006-WS-11 |
2006-WR-11 |
0.787(20.0) |
0.937(23.8) |
| 12 |
2006-WS-12 |
2006-WR-12 |
0.866(22.0) |
1.016(25.8) |
| 13 |
2006-WS-13 |
2006-WR-13 |
0.945(24.0) |
1.094(27.8) |
| 14 |
2006-WS-14 |
2006-WR-14 |
1.024(26.0) |
1.173(29.8) |
| 15 |
2006-WS-15 |
2006-WR-15 |
1.104(28.0) |
1.252(31.8) |
|
HOUSING:
| Poles |
Part No. |
Dimensions in. (mm) |
Material |
| A |
B |
| 2 |
2006A-WR-2 |
0.079(2.0) |
0.228(5.8) |
Nylon
66
UL94V-0
Post:
Brass Tin/Plated
Base:Nylon 66
UL94V-0 Natural
|
| 3 |
2006A-WR-3 |
0.157(4.0) |
0.307(7.8) |
| 4 |
2006A-WR-4 |
0.236(6.0) |
0.386(9.8) |
| 5 |
2006A-WR-5 |
0.315(8.0) |
0.465(11.8) |
| 6 |
2006A-WR-6 |
0.394(10.0) |
0.543(13.8) |
| 7 |
2006A-WR-7 |
0.472(12.0) |
0.622(15.8) |
| 8 |
2006A-WR-8 |
0.551(14.0) |
0.701(17.8) |
| 9 |
2006A-WR-9 |
0.630(16.0) |
0.780(19.8) |
| 10 |
2006A-WR-10 |
0.709(18.0) |
0.858(21.8) |
| 11 |
2006A-WR-11 |
0.787(20.0) |
0.937(23.8) |
| 12 |
2006A-WR-12 |
0.866(22.0) |
1.016(25.8) |
| 13 |
2006A-WR-13 |
0.945(24.0) |
1.094(27.8) |
| 14 |
2006A-WR-14 |
1.024(26.0) |
1.173(29.8) |
| 15 |
2006A-WR-15 |
1.104(28.0) |
1.252(31.8) |
|
|
