0.098" (2.5mm) Center Single Row(Double Row)Mini Latch Housing & Header

SPECIFICATIONS:
  • Poles: 2-20
    Voltage rating: AC 250V, DC 350C
  • Current ration: AC, DC, 2A
  • Withstand voltage: AC 1000V/min
  • Insulation resistance: 1000M min
  • Temperature range: -25~+85 oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
  • Testing/ 20M max.

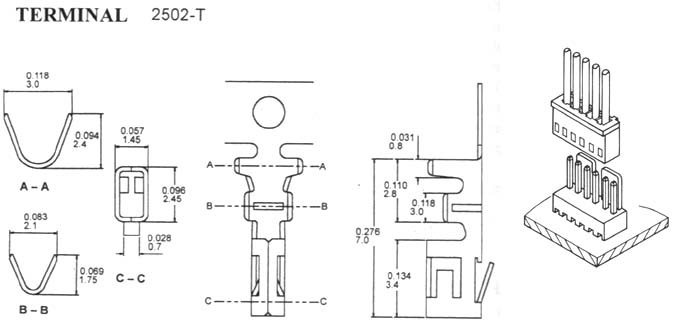

 TERMINAL:
  • Part No.: 2502-T
  • Applicable wires: AWG#22-28
  • Finish: Tin/Plated
  • Material: Phos. Bronze(Brass)
  • Hardness: H
  • Thickness: 0.2mm
  • Q'ty:10,000pcs/roll
  • Dimension

　

HOUSING:
  • Part No.:2502-H
  • Poles:2-20
  • Material: Nylon , UL94V-2
  • Q'ty: 500, 1000 pcs/roll
  • Dimension

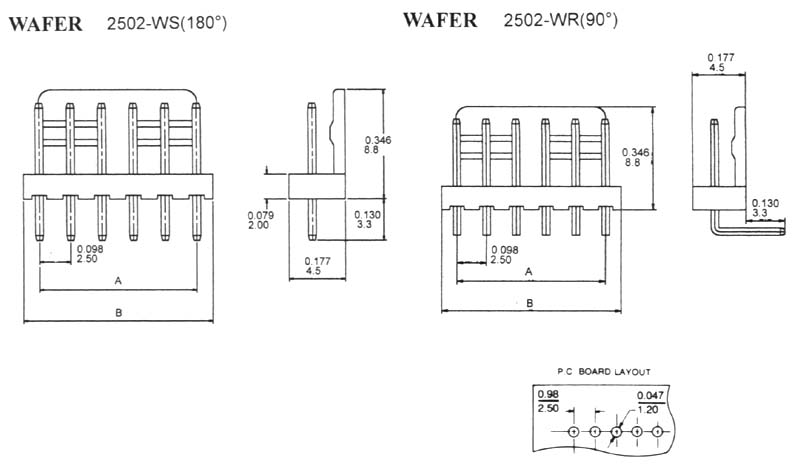

WAFER:
  • Part No.:2502-WS(180o),2502-WR(90o)
  • Poles:2-20
  • Material:
    Post: Brass, Tin/Plated
    Base: UL94V-2
  • Q'ty: 500, 1000 pcs/roll
  • Dimension
HOUSING:
Poles Part No.

Dimensions in. (mm)

Material
A B
2 2502-H-2 0.098(2.5) 0.236(6.0) Nylon 66
UL94V-2
3 2502-H-3 0.197(5.0) 0.225(8.5)
4 2502-H-4 0.295(7.5) 0.433(11.0)
5 2502-H-5 0.394(10.0) 0.531(13.5)
6 2502-H-6 0.492(12.5) 0.630(16.0)
7 2502-H-7 0.591(15.0) 0.728(18.5)
8 2502-H-8 0.689(17.5) 0.827(21.0)
9 2502-H-9 0.787(20.0) 0.925(23.5)
10 2502-H-10 0.886(22.5) 1.024(26.0)
11 2502-H-11 0.984(25.0) 1.122(28.5)
12 2502-H-12 1.083(27.5) 1.240(31.5)
13 2502-H-13 0.181(30.0) 1.319(33.5)
14 2502-H-14 1.280(32.5) 1.417(36.0)
15 2502-H-15 1.378(35.0) 1.516(38.5)
16 2502-H-16 1.476(37.5) 1.614(41.0)
17 2502-H-17 1.575(40.0) 1.713(43.5)
18 2502-H-18 1.673(42.5) 1.811(46.0)
19 2502-H-19 1.870(47.5) 1.909(48.5)
20 2502-H-20 1.772(45.0) 2.008(51.0)
WAFER:
Poles Part No.

Dimensions in. (mm)
Top entry type Side entry type A B
2 2502-WS-2 2502-WR-2 0.098(2.5) 0.201(5.1)
3 2502-WS-3 2502-WR-3 0.197(5.0) 0.299(7.6)
4 2502-WS-4 2502-WR-4 0.295(7.5) 0.398(10.1)
5 2502-WS-5 2502-WR-5 0.394(10.0) 0.496(12.6)
6 2502-WS-6 2502-WR-6 0.492(12.5) 0.594(15.1)
7 2502-WS-7 2502-WR-7 0.591(15.0) 0.693(17.6)
8 2502-WS-8 2502-WR-8 0.689(17.5) 0.791(20.1)
9 2502-WS-9 2502-WR-9 0.787(20.0) 0.890(22.6)
10 2502-WS-10 2502-WR-10 0.886(22.5) 0.988(25.1)
11 2502-WS-11 2502-WR-11 0.984(25.0) 1.087(27.6)
12 2502-WS-12 2502-WR-12 1.083(27.5) 1.185(30.1)
13 2502-WS-13 2502-WR-13 0.181(30.0) 1.283(32.6)
14 2502-WS-14 2502-WR-14 1.280(32.5) 1.382(35.1)
15 2502-WS-15 2502-WR-15 1.378(35.0) 1.480(37.6)
16 2502-WS-16 2502-WR-16 1.476(37.5) 1.579(40.1)
17 2502-WS-17 2502-WR-17 1.575(40.0) 1.677(42.6)
18 2502-WS-18 2502-WR-18 1.673(42.5) 1.776(45.1)
19 2502-WS-19 2502-WR-19 1.772(45.5) 1.874(47.6)
20 2502-WS-20 2502-WR-20 1.870(47.5) 1.972(50.1)
