SPECIFICATIONS:
- Poles: 2-20
Voltage rating: AC 250V DC
- Current ration: AC, DC,
3A
- Withstand voltage: AC
1000V/min
- Insulation resistance: 1000M
 min
- Temperature range: -25~+85 oC
- Applicable PC board thickness:
0.031"~ 0.063" (0.8-1.6mm)
- Contact resistance:
Initial value/10M max.
After environmental
- Testing/ 20M max.
|
TERMINAL:
- Part No.: 2503-T
- Applicable wires: AWG#22-30
- Finish: Tin/Plated
- Material: Phos.Bronze(Brass)
- Hardness: H
- Thickness: 0.2mm
- Q'ty:8000pcs/roll
- Dimension
|

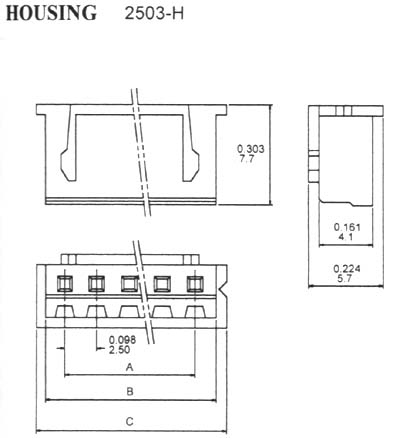

HOUSING:
- Part No.:2503-H
- Poles:2-20
- Material: Nylon , UL94V-2
- Q'ty: 500, 1000 pcs/roll
- Dimension
|

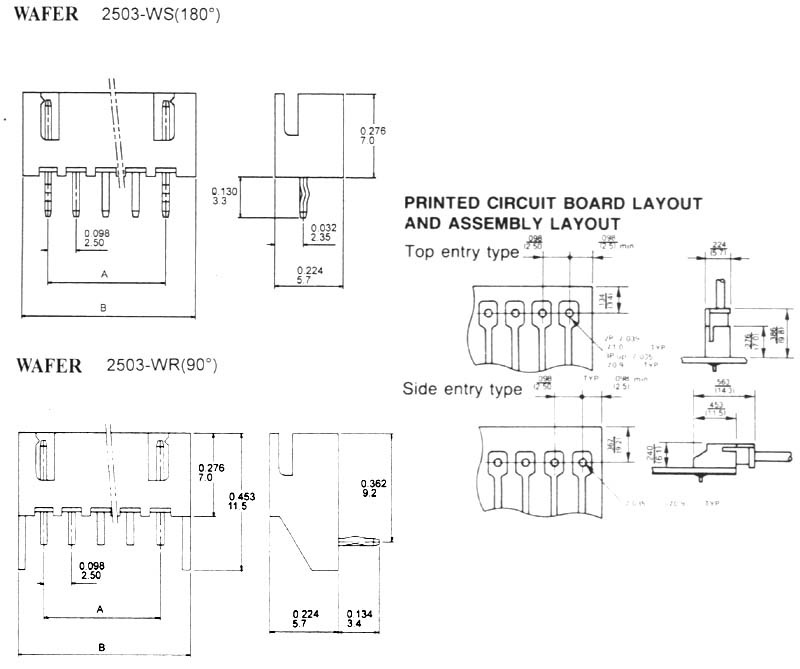

WAFER:
- Part No.:2503-WS(180o),2503-WR(90o)
- Poles:2-20
- Material:
Post: Brass, Tin/Plated
Base: Nylon 66,UL94V-0 Natural
- Q'ty: 500, 1000 pcs/roll
- Dimension
|
HOUSING:
| Poles |
Part No. |
Dimensions in. (mm) |
| A |
B |
C |
| 2 |
2503-H-2 |
0.098(2.5) |
0.224(5.7) |
0.287(7.3) |
| 3 |
2503-H-3 |
0.197(5.0) |
0.323(8.2) |
0.386(9.8) |
| 4 |
2503-H-4 |
0.295(7.5) |
0.421(10.7) |
0.484(12.3) |
| 5 |
2503-H-5 |
0.394(10.0) |
0.520(13.2) |
0.583(14.8) |
| 6 |
2503-H-6 |
0.492(12.5) |
0.618(15.7) |
0.681(17.3) |
| 7 |
2503-H-7 |
0.591(15.0) |
0.717(18.2) |
0.780(19.8) |
| 8 |
2503-H-8 |
0.689(17.5) |
0.815(20.7) |
0.878(22.3) |
| 9 |
2503-H-9 |
0.787(20.0) |
0.913(23.2) |
0.976(24.8) |
| 10 |
2503-H-10 |
0.886(22.5) |
1.012(25.7) |
1.075(27.3) |
| 11 |
2503-H-11 |
0.984(25.0) |
1.110(28.2) |
1.173(29.8) |
| 12 |
2503-H-12 |
1.083(27.5) |
1.209(30.7) |
1.272(32.2) |
| 13 |
2503-H-13 |
0.181(30.0) |
1.307(33.2) |
1.370(34.8) |
| 14 |
2503-H-14 |
1.280(32.5) |
1.406(35.7) |
1.469(37.3) |
| 15 |
2503-H-15 |
1.378(35.0) |
1.504(38.2) |
1.567(39.8) |
| 20 |
2503-H-20 |
1.870(47.5) |
1.996(50.7) |
2.059(52.3) |
|
WAFER:
| Poles |
Part No. |
Dimensions in. (mm) |
| Top entry type |
Side entry type |
A |
B |
| 2 |
2503-WS-2 |
2503-WR-2 |
0.098(2.5) |
0.295(7.5) |
| 3 |
2503-WS-3 |
2503-WR-3 |
0.197(5.0) |
0.394(10.0) |
| 4 |
2503-WS-4 |
2503-WR-4 |
0.295(7.5) |
0.492(12.5) |
| 5 |
2503-WS-5 |
2503-WR-5 |
0.394(10.0) |
0.591(15.0) |
| 6 |
2503-WS-6 |
2503-WR-6 |
0.492(12.5) |
0.689(17.5) |
| 7 |
2503-WS-7 |
2503-WR-7 |
0.591(15.0) |
0.787(20.0) |
| 8 |
2503-WS-8 |
2503-WR-8 |
0.689(17.5) |
0.886(22.5) |
| 9 |
2503-WS-9 |
2503-WR-9 |
0.787(20.0) |
0.984(25.0) |
| 10 |
2503-WS-10 |
2503-WR-10 |
0.886(22.5) |
1.083(27.5) |
| 11 |
2503-WS-11 |
2503-WR-11 |
0.984(25.0) |
0.181(30.0) |
| 12 |
2503-WS-12 |
2503-WR-12 |
1.083(27.5) |
1.280(32.5) |
| 13 |
2503-WS-13 |
2503-WR-13 |
0.181(30.0) |
1.378(35.0) |
| 14 |
2503-WS-14 |
2503-WR-14 |
1.280(32.5) |
1.476(37.5) |
| 15 |
2503-WS-15 |
2503-WR-15 |
1.378(35.0) |
1.575(40.0) |
| 20 |
2503-WS-20 |
2503-WR-20 |
1.870(47.5) |
2.066(52.5) |
|
