SPECIFICATIONS:
- Poles: 2-20
- Voltage rating: AC 250V DC
- Current ration: AC, DC,
2.5A
- Withstand voltage: AC
1500V/min
- Insulation resistance: 1000M
 min
- Temperature range: -25oC
~ +85oC
- Applicable PC board thickness:
0.031"~ 0.063" (0.8-1.6mm)
- Contact resistance:
Initial value/10M max.
After environmental
Testing/ 20M max.
|

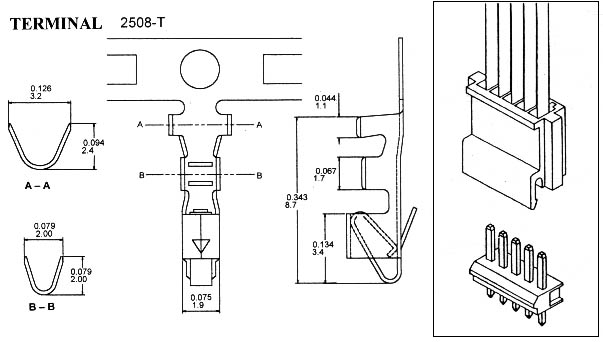

TERMINAL:
- Part No.: 2508-T
- Applicable wires: AWG#22-28
- Finish: Tin/Plated
- Material: Brass
- Hardness: H
- Thickness: 0.2mm
- Q'ty:7000pcs/roll
- Dimension
|

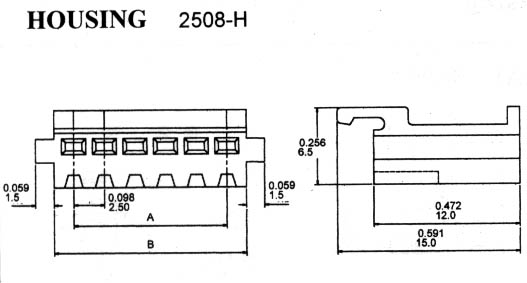

HOUSING:
- Part No.:2508-H
- Poles:2-16, 18 and 20 circuits
- Material: Nylon 66 , UL94V-0
- Q'ty: 500, 1000 pcs/roll
- Dimension
|

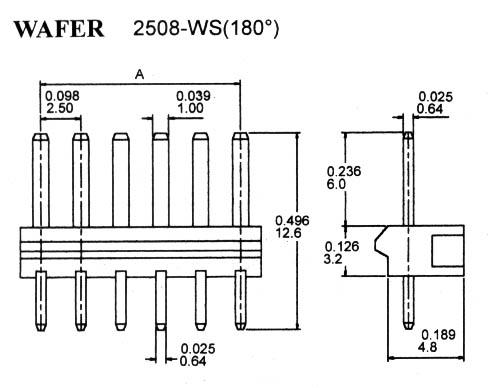

WAFER:
- Part No.:2508-WS(180o),2508-WR(90o)
- Poles:2-16, 18 and 20 circuits
- Material:
Post: Brass, Tin/Plated
Base: Nylon 66, UL94V-0
- Q'ty: 500, 1000 pcs/roll
- Dimension
|
HOUSING:
| Poles |
Part No. |
Dimensions in. (mm) |
Material |
| A |
B |
| 2 |
2508-H-2 |
0.098(2.5) |
0.224(5.7) |
Nylon
66
UL94V-0 |
| 3 |
2508-H-3 |
0.197(5.0) |
0.328(8.2) |
| 4 |
2508-H-4 |
0.295(7.5) |
0.421(10.7) |
| 5 |
2508-H-5 |
0.394(10.0) |
0.520(13.2) |
| 6 |
2508-H-6 |
0.492(12.5) |
0.618(15.7) |
| 7 |
2508-H-7 |
0.591(15.0) |
0.717(18.2) |
| 8 |
2508-H-8 |
0.689(17.5) |
0.815(20.7) |
| 9 |
2508-H-9 |
0.787(20.0) |
0.913(23.2) |
| 10 |
2508-H-10 |
0.886(22.5) |
1.0.12(25.7) |
| 11 |
2508-H-11 |
0.984(25.0) |
1.110(28.2) |
| 12 |
2508-H-12 |
1.083(27.5) |
1.209(30.7) |
| 13 |
2508-H-13 |
0.181(30.0) |
1.307(33.2) |
| 14 |
2508-H-14 |
1.280(32.5) |
1.406(35.7) |
| 15 |
2508-H-15 |
1.378(35.0) |
1.504(38.2) |
| 16 |
2508-H-16 |
1.476(37.5) |
1.602(40.7) |
| 18 |
2508-H-18 |
1.673(42.5) |
1.799(45.7) |
| 20 |
2508-H-20 |
1.870(47.5) |
1.996(50.7) |
|
WAFER:
| Poles |
Part No. |
Dimensions in. (mm) |
Material |
| Top entry type |
A |
| 2 |
2508-WS-2 |
0.098(2.5) |
Nylon
66
UL94V-0 |
| 3 |
2508-WS-3 |
0.197(5.0) |
| 4 |
2508-WS-4 |
0.295(7.5) |
| 5 |
2508-WS-5 |
0.394(10.0) |
| 6 |
2508-WS-6 |
0.492(12.5) |
| 7 |
2508-WS-7 |
0.591(15.0) |
| 8 |
2508-WS-8 |
0.689(17.5) |
| 9 |
2508-WS-9 |
0.787(20.0) |
| 10 |
2508-WS-10 |
0.886(22.5) |
| 11 |
2508-WS-11 |
0.984(25.0) |
| 12 |
2508-WS-12 |
1.083(27.5) |
| 13 |
2508-WS-13 |
1181(30.0) |
| 14 |
2508-WS-14 |
1.280(32.5) |
| 15 |
2508-WS-15 |
1.378(35.0) |
| 16 |
2508-WS-16 |
1.476(37.5) |
| 18 |
2508-WS-18 |
1.673(42.5) |
| 20 |
2508-WS-20 |
1.870(47.5) |
|
