0.100" (2.54mm) Center Crimp Terminal Housing

SPECIFICATIONS:
  • Poles:2-15
  • Voltage rating: AC 250V
  • Current ration: AC, DC, 3A
  • Withstand voltage: AC 1000V/min
  • Insulation resistance: 1000M min
  • Temperature range:
    -25    oC ~ +85oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
    Testing/ 20M max.

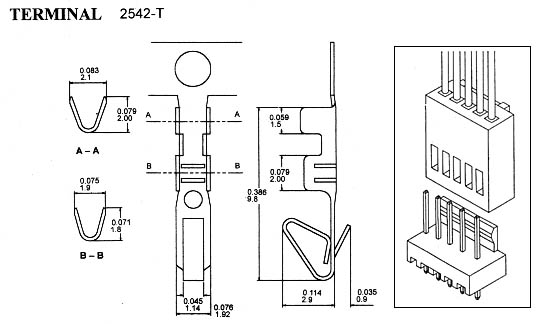

 TERMINAL:
  • Part No.: 2542-T
  • Applicable wires: AWG#22-28
  • Finish: Tin/Plated
  • Material: Phos. Bronze (Brass)
  • Hardness: SH
  • Thickness: 0.2mm
  • Q'ty:10,000pcs/roll
  • Dimension

　

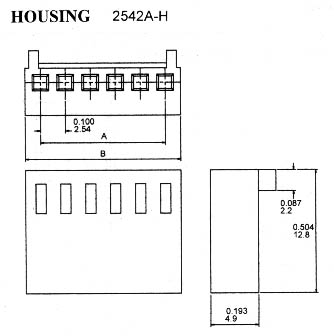

HOUSING:
  • Part No.:2542A-H
  • Poles: 2-15
  • Material: Nylon 66, UL94V-0 Red
  • Q'ty: 500, 1000 pcs/roll
  • Dimension

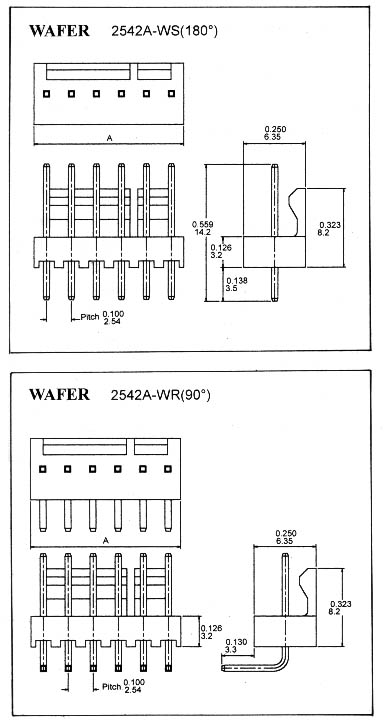

WAFER:
  • Part No.:
    2542A-WS(180    o),2542A-WR(90o)
  • Poles: 2-15
  • Material:
    Post: Brass, Gold/Plated
    Base: Nylon, UL94V-0 Red
  • Q'ty: 500, 1000 pcs/roll
  • Dimension
HOUSING:
Poles Part No.

Dimensions In. (mm)

 Material
A B
2 2542A-H-2 0.10(2.54) 0.226(5.74) Nylon 66

UL94V-0
3 2542A-H-3 0.20(5.08) 0.326(8.28)
4 2542A-H-4 0.30(7.62) 0.426(10.82)
5 2542A-H-5 0.40(10.16) 0.526(13.36)
6 2542A-H-6 0.50(12.70) 0.626(15.90)
7 2542A-H-7 0.60(15.24) 0.726(18.44)
8 2542A-H-8 0.70(17.78) 0.826(20.98)
9 2542A-H-9 0.80(20.32) 0.926(23.52)
10 2542A-H-10 0.90(22.86) 1.026(26.06)
11 2542A-H-11 1.00(25.40) 1.126(28.60)
12 2542A-H-12 1.10(27.94) 1.226(31.14)
13 2542A-H-13 1.20(30.48) 1.326(33.68)
14 2542A-H-14 1.30(33.02) 1.426(36.22)
15 2542A-H-15 1.40(35.56) 1.526(38.76)
WAFER:
Poles Part No.

Dimensions in. (mm)

 Material
Top entry type Side entry type A
2 2542A-WS-2 2542A-WR-2 0.20(5.08) Post: Brass
Tin/Plated

Base:
Nylon 66
UL94V-0
3 2542A-WS-3 2542A-WR-3 0.30(7.62)
4 2542A-WS-4 2542A-WR-4 0.40(10.16)
5 2542A-WS-5 2542A-WR-5 0.50(12.70)
6 2542A-WS-6 2542A-WR-6 0.60(15.24)
7 2542A-WS-7 2542A-WR-7 0.70(17.78)
8 2542A-WS-8 2542A-WR-8 0.80(20.32)
9 2542A-WS-9 2542A-WR-9 0.90(22.86)
10 2542A-WS-10 2542A-WR-10 1.00(25.40)
11 2542A-WS-11 2542A-WR-11 1.10(27.94)
12 2542A-WS-12 2542A-WR-12 1.20(30.48)
13 2542A-WS-13 2542A-WR-13 1.30(33.02)
14 2542A-WS-14 2542A-WR-14 1.40(35.56)
15 2542A-WS-15 2542A-WR-15 1.50(38.10)
