0.100" (2.54mm) Center Crimp Terminal Housing

SPECIFICATIONS:
  • Poles:2-12
  • Voltage rating: AC 250V
  • Current ration: AC, DC, 2A
  • Withstand voltage: AC 1500V/min
  • Insulation resistance: 1000M min
  • Temperature range:
    -25    oC ~ +95oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
    Testing/ 20M max.

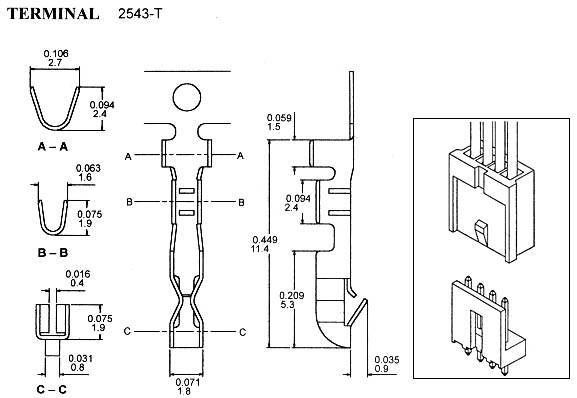

 TERMINAL:
  • Part No.: 2543-T
  • Applicable wires: AWG#22-26
  • Finish: Tin/Plated
  • Material: Brass
  • Hardness: SH
  • Thickness: 0.2mm
  • Q'ty:10,000pcs/roll
  • Dimension

　

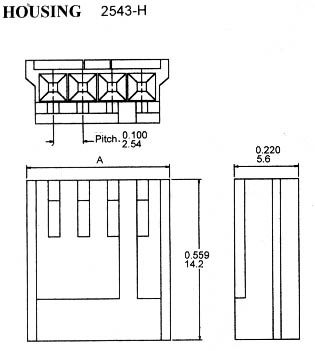

HOUSING:
  • Part No.:2543-H
  • Poles: 2-12
  • Material: Nylon 66, UL94V-0
  • Q'ty: 1000 pcs/roll
  • Dimension

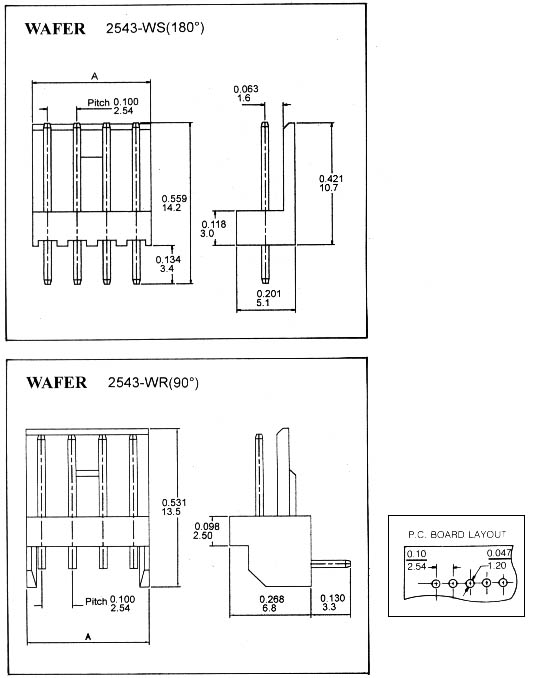

WAFER:
  • Part No.:
    2543-WS(180    o),2543-WR(90o)
  • Poles: 2-12
  • Material:
    Post: Brass, Gold/Plated
    Base: Nylon, UL94V-0
  • Q'ty: 500, 1000 pcs/roll
  • Dimension
HOUSING:
Poles Part No.

Dimensions In. (mm)

 Material
A
2 2543-H-2 0.287(7.3) Nylon 66

UL94V-0
3 2543-H-3 0.386(9.8)
4 2543-H-4 0.484(14.8)
5 2543-H-5 0.583(14.8)
6 2543-H-6 0.681(17.3)
7 2543-H-7 0.780(19.8)
8 2543-H-8 0.878(22.3)
9 2543-H-9 0.976(24.8)
10 2543-H-10 1.075(27.3)
11 2543-H-11 1.173(29.8)
12 2543-H-12 1.272(32.3)
WAFER:
Poles Part No.

Dimensions in. (mm)

 Material
Top entry type Side entry type A
2 2543-WS-2 2543-WR-2 0.20(5.08) Post: Brass
Tin/Plated

Base:
Nylon 66
UL94V-0
3 2543-WS-3 2543-WR-3 0.30(7.62)
4 2543-WS-4 2543-WR-4 0.40(10.16)
5 2543-WS-5 2543-WR-5 0.50(12.70)
6 2543-WS-6 2543-WR-6 0.60(15.24)
7 2543-WS-7 2543-WR-7 0.70(17.78)
8 2543-WS-8 2543-WR-8 0.80(20.32)
9 2543-WS-9 2543-WR-9 0.90(22.86)
10 2543-WS-10 2543-WR-10 1.00(25.40)
11 2543-WS-11 2543-WR-11 1.10(27.94)
12 2543-WS-12 2543-WR-12 1.20(30.48)
