0.100" (2.54mm) Center Crimp Terminal Housing

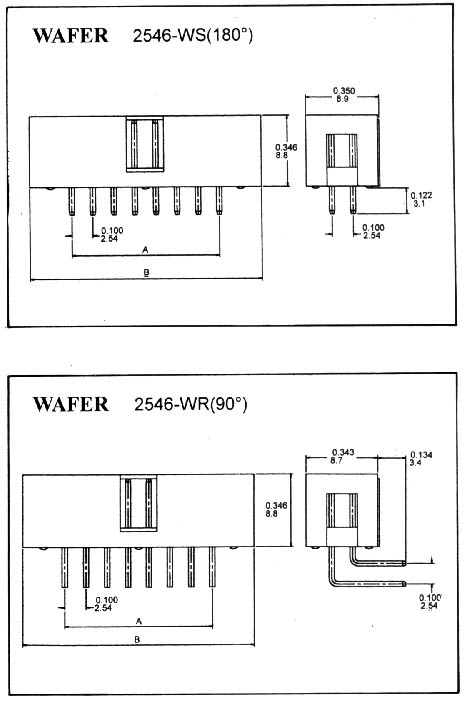

WAFER:
  • Part No.: 2546-WS(180o),2546-WR(90o)
  • Poles: 2-
  • Material:
    Post: Brass, Gold Plated / Tin Plated
    Base: PBT & 30% Glass Fiber (UL94V-0)
  • Q'ty: 250, 500 pcs/roll
  • Dimension

　

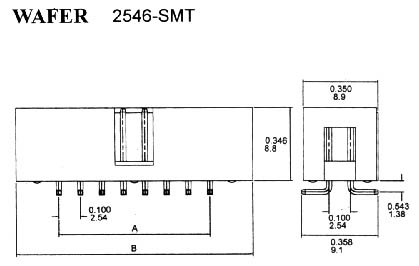

WAFER:
  • Part No.: 2546-SMT
  • Poles: 2-
  • Material:
    Post: Brass, Gold Plated / Tin Plated
    Base: PBT & 30% Glass Fiber (UL94V-0)
  • Q'ty: 250, 500 pcs/roll
  • Dimension

　

WAFER:
Poles Part No.

Dimensions in. (mm)
Top entry type Side entry type A B
10 2546-WS-10 2546-WR-10 0.400(10.16) 0.799(20.30)
14 2546-WS-14 2546-WR-14 0.601(15.26) 0.966(25.30)
16 2546-WS-16 2546-WR-16 0.700(15.26) 1.099(27.92)
20 2546-WS-20 2546-WR-20 0.900(22.86) 1.299(33.00)
26 2546-WS-26 2546-WR-26 1.200(30.48) 1.600(40.65)
34 2546-WS-34 2546-WR-34 1.600(40.64) 2.001(50.83)
40 2546-WS-40 2546-WR-40 1.900(48.26) 2.299(58.40)
50 2546-WS-50 2546-WR-50 2.400(60.96) 2.807(71.30)
WAFER:
Poles Part No.

Dimensions in. (mm)

 Material
A B
10 2546-SMT-2x5 0.400(10.16) 0.799(20.30) Post: Brass
Tin/Plated
Gold Plated

Base: PBT &
30%
Glass Fiber
UL94V-0
14 2546-SMT-2x7 0.601(15.26) 0.996(25.30)
16 2546-SMT-2x8 0.700(17.78) 1.099(27.92)
20 2546-SMT-2x10 0.900(22.86) 1.299(33.00)
26 2546-SMT-2x13 1.200(30.48) 1.600(40.65)
34 2546-SMT-2x17 1.600(40.64) 2.001(50.83)
40 2546-SMT-2x20 1.900(48.26) 2.299(58.40)
50 2546-SMT-2x25 2.400(60.96) 2.807(71.30)
