0.098" (2.5mm) Diameter Crimp Terminal

SPECIFICATIONS:
  • Poles:2-12 and 18
  • Voltage rating: AC 250V
  • Current ration: AC, DC, 2A
  • Withstand voltage: AC 800V/min
  • Insulation resistance: 1000M min
  • Temperature range:
    -25    oC ~ +85oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
    Testing/ 20M max.

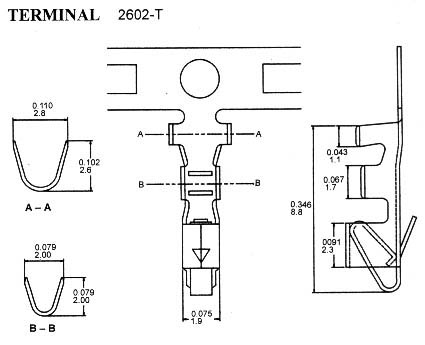

 TERMINAL:
  • Part No.: 2602-T
  • Applicable wires: AWG#22-28
  • Finish: Tin / Plated
  • Material: Brass
  • Hardness: H
  • Thickness: 0.2mm
  • Q'ty:7000pcs/roll
  • Dimension

　

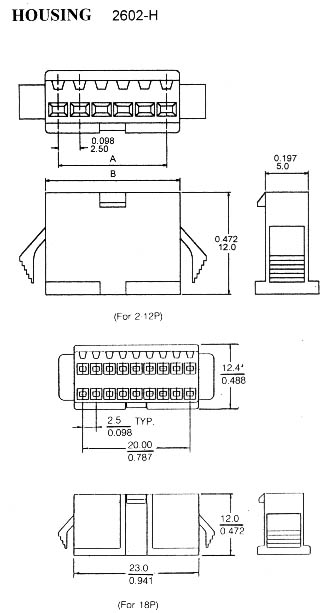

HOUSING:
  • Part No.:2602-H
  • Poles: 2-12 and 18
  • Material: Nylon, UL94V-0
  • Q'ty: 500, 1000 pcs/roll
  • Dimension
HOUSING:
Poles Part No.

Dimensions In. (mm)

 Material
A B
2 2602-H-2 0.098(2.5) 0.217(5.5) Nylon 66

UL94V-0
3 2602-H-3 0.197(5.0) 0.315(8.0)
4 2602-H-4 0.295(7.5) 0.402(10.2)
5 2602-H-5 0.394(10.0) 0.512(13.0)
6 2602-H-6 0.492(12.5) 0.610(15.5)
7 2602-H-7 0.591(15.0) 0.709(18.0)
8 2602-H-8 0.689(17.5) 0.807(20.5)
9 2602-H-9 0.787(20.0) 0.906(23.0)
10 2602-H-10 0.886(22.5) 1.004(25.5)
11 2602-H-11 0.984(25.0) 1.102(28.0)
12 2602-H-12 1.083(27.5) 1.201(30.5)
18 2602-H-18 1.673(42.5) 1.791(45.5)
