0.156" (3.96mm) Pitch Disconnectable Connectors For Medium-Currency Application

SPECIFICATIONS:
  • Poles:2-14
  • Voltage rating: AC 250V
  • Current ration: AC, DC, 7A
  • Withstand voltage: AC 1500V/min
  • Insulation resistance: 1000M min
  • Temperature range:
    -25    oC ~ +85oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
    Testing/ 20M max.
 TERMINAL:
  • Part No.: 3962-T
  • Applicable wires: AWG#22-28
  • Finish: Tin/Plated
  • Material: Brass
  • Hardness: SH
  • Thickness: 0.25mm
  • Q'ty:5000pcs/roll
  • Dimension

　

HOUSING:
  • Part No.:3962-H
  • Poles: 2-14
  • Material: Nylon 66 , UL94V-0
  • Q'ty: 500, 1000 pcs/roll
  • Dimension
WAFER:
  • Part No.:
    3962-WS(180    o),3962-WR(90o)
  • Poles: 2-14
  • Material:
    Post: Brass, Tin/Plated
    Base: Nylon 66, UL94V-0
  • Q'ty: 500, 1000 pcs/roll
  • Dimension

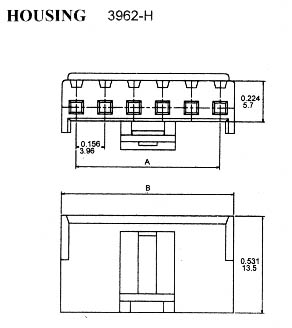

HOUSING:
Poles Part No.

Dimensions In. (mm)

 Material
A B
2 3962-H-2 0.156(3.96) 0.312(7.92) Nylon 66

UL94V-0
3 3962-H-3 0.312(7.92) 0.468(11.88)
4 3962-H-4 0.468(11.88) 0.624(15.84)
5 3962-H-5 0.624(14.84) 0.780(19.80)
6 3962-H-6 0.780(19.80) 0.935(23.76)
7 3962-H-7 0.935(23.76) 1.091(27.72)
8 3962-H-8 1.091(27.72) 1.247(31.68)
9 3962-H-9 1.247(31.68) 1.403(35.64)
10 3962-H-10 1.403(35.64) 1.559(39.60)
11 3962-H-11 1.559(39.60) 1.715(43.56)
12 3962-H-12 1.715(43.56) 1.871(47.52)
13 3962-H-13 1.871(47.52) 2.027(51.48)
14 3962-H-14 2.027(51.48) 2.183(55.44)

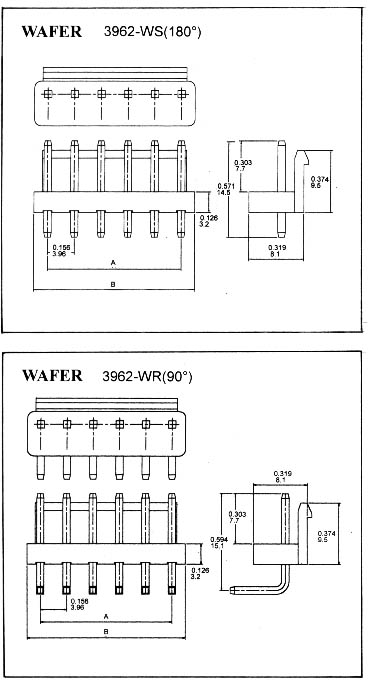

WAFER:
Poles Part No.

Dimensions in. (mm)
Top entry type Side entry type A B
2 3962-WS-2 3962-WR-2 0.156(3.96) 0.316(8.02)
3 3962-WS-3 3962-WR-3 0.312(7.92) 0.472(11.98)
4 3962-WS-4 3962-WR-4 0.468(11.88) 0.628(15.94)
5 3962-WS-5 3962-WR-5 0.624(15.84) 0.784(19.90)
6 3962-WS-6 3962-WR-6 0.780(19.80) 0.940(23.86)
7 3962-WS-7 3962-WR-7 0.935(23.76) 1.096(27.82)
8 3962-WS-8 3962-WR-8 1.091(27.72) 1.251(31.78)
9 3962-WS-9 3962-WR-9 1.247(31.68) 1.407(35.74)
10 3962-WS-10 3962-WR-10 1.403(35.64) 1.563(39.70)
11 3962-WS-11 3962-WR-11 1.559(39.60) 1.719(43.66)
12 3962-WS-12 3962-WR-12 1.714(43.56) 1.875(74.62)
13 3962-WS-13 3962-WR-13 1.871(47.52) 2.031(51.58)
14 3962-WS-14 3962-WR-14 2.026(51.48) 2.187(55.54)
