0.05" (1.25mm) Pitch Wire-to-Board Crimp Terminal

SPECIFICATIONS:
  • Poles: 2-15
  • Voltage rating: AC 125V DC
  • Current ration: AC, DC, 1A, 0.8A for 32AWG
  • Withstand voltage: AC 250V/min
  • Insulation resistance: 100M min
  • Temperature range: -25~+85 oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
  • Testing/ 20M max.

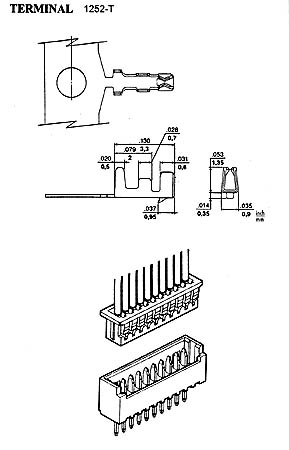

 TERMINAL:
  • Part No.:1252-T
  • Applicable wires: AWG#26-32
  • Finish: Tin/Plated (Gold Plated),
    (Gold Flash Plated)
  • Material: Phos. Bronze
  • Hardness: SH
  • Thickness: 0.15mm
  • Q'ty: 10,000 pcs/roll
  • Dimension

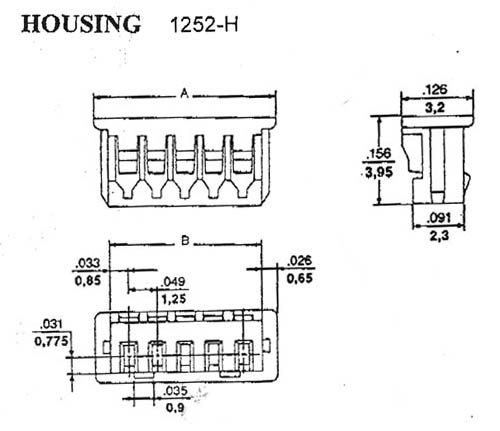

 HOUSING:
  • Part No.:1252-H
  • Poles: 2-15
  • Material: Nylon 66, UL94V-0
  • Dimension

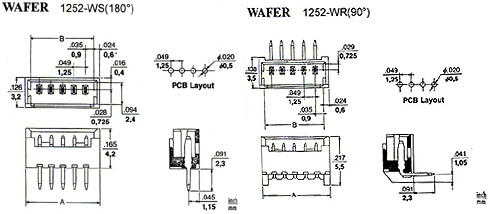

WAFER:
  • Part No.:1252-WS (180o), 1252-WR (90o)
  • Poles: 2-15
  • Material:
    Post: Brass, Tin/Plated
    Base: Nylon 66, UL94V-0
  • Q'ty: 1000 pcs/roll
  • Dimension
HOUSING:
Poles Part No.

Dimensions in. (mm)
A B
2 1252-H-2

0.167(4.25)

0.116(2.95)
3 1252-H-3

0.217(5.50)

0.165(4.20)
4 1252-H-4

0.266(6.75)

0.215(5.45)
5 1252-H-5

0.315(8.00)

0.264(6.70)
6 1252-H-6

0.364(9.25)

0.313(7.95)
7 1252-H-7

0.413(10.50)

0.362(9.20)
8 1252-H-8

0.463(11.75)

0.411(10.45)
9 1252-H-9

0.512(13.00)

0.461(11.70)
10 1252-H-10

0.561(14.25)

0.510(12.95)
11 1252-H-11

0.610(15.50)

0.559(14.20)
12 1252-H-12

0.659(16.75)

0.608(15.45)
13 1252-H-13

0.709(18.00)

0.657(16.70)
14 1252-H-14

0.758(19.25)

0.707(17.95)
15 1252-H-15

0.807(20.50)

0.756(19.20)
WAFER:
Poles Part No.

Dimensions in. (mm)
Top Entry Type Side Entry Type A B
2 1252-WS-2 1252-WR-2

0.167(4.25)

0.120(3.05)
3 1252-WS-3 1252-WR-3

0.217(5.50)

0.169(4.30)
4 1252-WS-4 1252-WR-4

0.266(6.75)

0.219(5.55)
5 1252-WS-5 1252-WR-5

0.315(8.00)

0.268(6.80)
6 1252-WS-6 1252-WR-6

0.364(9.25)

0.317(8.05)
7 1252-WS-7 1252-WR-7

0.413(10.50)

0.366(9.30)
8 1252-WS-8 1252-WR-8

0.463(11.75)

0.415(10.55)
9 1252-WS-9 1252-WR-9

0.512(13.00)

0.465(11.80)
10 1252-WS-10 1252-WR-10

0.561(14.25)

0.514(13.05)
11 1252-WS-11 1252-WR-11

0.610(15.50)

0.563(14.30)
12 1252-WS-12 1252-WR-12

0.659(16.75)

0.612(15.55)
13 1252-WS-13 1252-WR-13

0.709(18.00)

0.661(16.80)
14 1252-WS-14 1252-WR-14

0.758(19.25)

0.711(18.05)
15 1252-WS-15 1252-WR-15

0.807(20.50)

0.760(19.30)
