0.244" (6.2mm) Pitch Wire-to-Wire L Connector/ Terminal

SPECIFICATIONS:
  • Poles:
  • Voltage rating: AC 250V DC
  • Current ration: AC, DC, 5A
  • Withstand voltage: AC 1500V/min
  • Insulation resistance: 1000M min
  • Temperature range: -25~+85 oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
  • Testing/ 20M max.

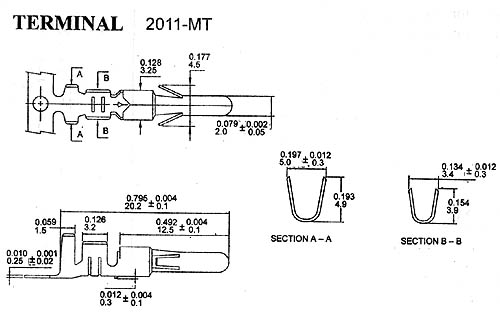

 TERMINAL:
  • Part No.:2011-MT
  • Applicable wires: AWG#14-18
  • Finish: Tin/Plated
  • Material: Brass
  • Hardness: SH
  • Thickness: 0.25mm
  • Q'ty: 4,000 pcs/roll
  • Dimension

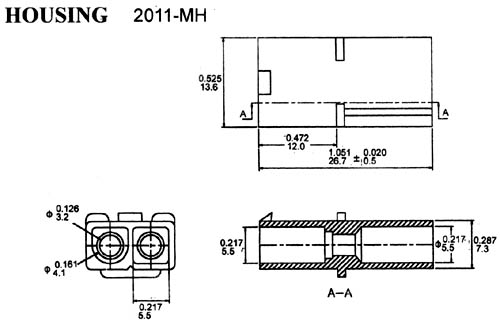

 HOUSING:
  • Part No.:2011-MH
  • Poles: 2
  • Material: Nylon 66, UL94V-2
  • Q'ty:
  • Dimension

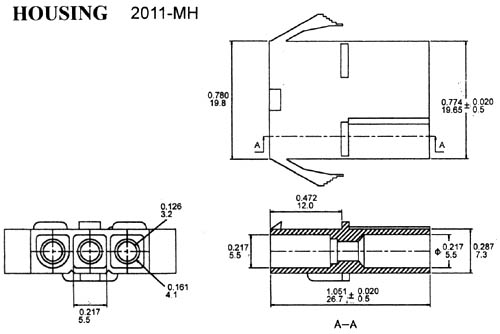

WAFER:
  • Part No.:2011-MH
  • Poles: 3
  • Material: Nylon 66, UL94V-2
  • Q'ty:
  • Dimension

0.244" (6.2mm) Pitch Wire-to-Wire L Connector/ Terminal

SPECIFICATIONS:
  • Poles:
  • Voltage rating: AC 250V DC
  • Current ration: AC, DC, 5A
  • Withstand voltage: AC 1500V/min
  • Insulation resistance: 1000M min
  • Temperature range: -25~+85 oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
  • Testing/ 20M max.

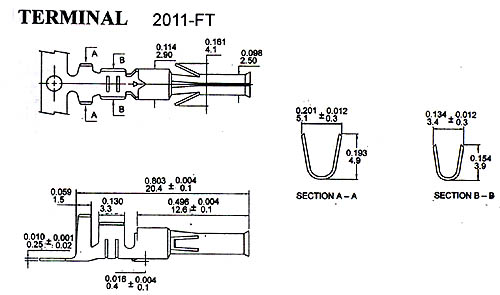

 TERMINAL:
  • Part No.:2011-FT
  • Applicable wires: AWG#14-18
  • Finish: Tin/Plated
  • Material: Brass
  • Hardness: SH
  • Thickness: 0.25mm
  • Q'ty: 4,000 pcs/roll
  • Dimension
 HOUSING:
  • Part No.:2011-
    FH-03
  • Poles: 2
  • Material: Nylon 66, UL94V-2
  • Q'ty:
  • Dimension
WAFER:
  • Part No.:2011-MH
  • Poles: 3
  • Material: Nylon 66, UL94V-2
  • Q'ty:
  • Dimension
