SPECIFICATIONS:
- Poles:
2-20 (Single row)
4-40 (Double row)
- Voltage rating: AC 200V DC
- Current ration: AC,
DC, 2A
- Withstand voltage: AC
650V/min
- Insulation
resistance: 1000M
 min
- Temperature range:
-25~+85 oC
- Applicable PC board
thickness:
0.031"~ 0.063" (0.8-1.6mm)
- Contact resistance:
Initial value/10M max.
After environmental
- Testing/ 20M max.
|

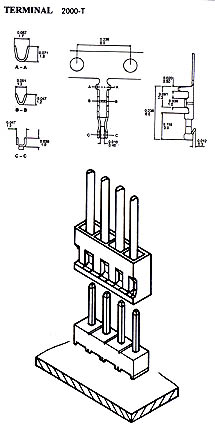

TERMINAL:
- Part No.:2000-T
- Applicable wires: AWG#26-30
- Finish: Gold-Flash (Gold in contact
area.)
- Material: Phos. Bronze(Brass)
- Hardness: SH
- Thickness: 0.2mm
- Q'ty: 10,000 pcs/roll
- Dimension
|
HOUSING:
- Part No.:2000-1H, 2000-2H
- Poles:
2-20 (Single
row)
4-40 (Double row)
- Material: Nylon, UL94V-1
- Q'ty: 1000 pcs/roll
- Dimension
|

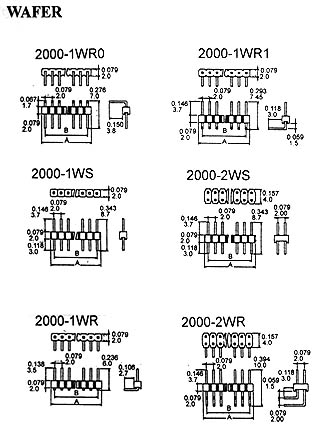

WAFER:
- Part No.:
2000-1WS (180o),
2000-1WR(90o)
2000-2WS (180o),
2000-2WR(90o)
- Poles:
2-20 (Single
row)
4-40 (Double row)
- Material:
Post: Brass, Gold/Plated
Base: UL94V-0, PBT
- Q'ty: 1000 pcs/roll
- Dimension
|

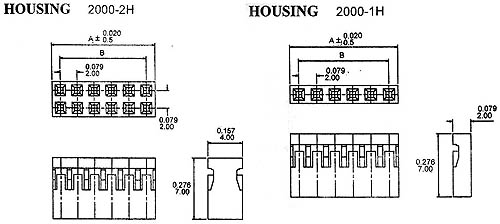

HOUSING:
| Poles |
Part
No. |
Dimensions in.
(mm) |
Material |
| A |
B |
|
2 |
2000-1H-2 |
0.157(4.0) |
0.079(2.0) |
Nylon
UL94V-1 |
|
3 |
2000-1H-3 |
0.236(6.0) |
0.157(4.0) |
|
4 |
2000-1H-4 |
0.315(8.0) |
0.236(6.0) |
|
5 |
2000-1H-5 |
0.394(10.0) |
0.315(8.0) |
|
6 |
2000-1H-6 |
0.472(12.0) |
0.394(10.0) |
|
7 |
2000-1H-7 |
0.551(14.0) |
0.472(12.0) |
|
8 |
2000-1H-8 |
0.630(16.0) |
0.551(14.0) |
|
9 |
2000-1H-9 |
0.709(18.0) |
0.630(16.0) |
|
10 |
2000-1H-10 |
0.787(20.0) |
0.709(18.0) |
|
11 |
2000-1H-11 |
0.866(22.0) |
0.787(20.0) |
|
12 |
2000-1H-12 |
0.945(24.0) |
0.866(22.0) |
|
13 |
2000-1H-13 |
1.024(26.0) |
0.945(24.0) |
|
14 |
2000-1H-14 |
11.04((28.0) |
1.024(26.0) |
|
15 |
2000-1H-15 |
1.181(30.0) |
1.104(28.0) |
|
16 |
2000-1H-16 |
1.260(32.0) |
1.181(30.0) |
|
17 |
2000-1H-17 |
1.399(34.0) |
1.260(32.0) |
|
18 |
2000-1H-18 |
1.417(36.0) |
1.399(34.0) |
|
19 |
2000-1H-19 |
1.500(38.0) |
1.417(36.0) |
|
20 |
2000-1H-20 |
1.575(40.0) |
1.500(38.0) |
|
WAFER:
| Poles |
Part
No. |
Dimensions in.
(mm) |
Material |
| A |
B |
|
4 |
2000-2H-2x2 |
0.157(4.0) |
0.079(2.0) |
Nylon
UL94V-1 |
|
6 |
2000-2H-2x3 |
0.236(6.0) |
0.157(4.0) |
|
8 |
2000-2H-2x4 |
0.315(8.0) |
0.236(6.0) |
|
10 |
2000-2H-2x5 |
0.394(10.0) |
0.315(8.0) |
|
12 |
2000-2H-2x6 |
0.472(12.0) |
0.394(10.0) |
|
14 |
2000-2H-2x7 |
0.551(14.0) |
0.472(12.0) |
|
16 |
2000-2H-2x8 |
0.630(16.0) |
0.551(14.0) |
|
18 |
2000-2H-2x9 |
0.709(18.0) |
0.630(16.0) |
|
20 |
2000-2H-2x10 |
0.787(20.0) |
0.709(18.0) |
|
22 |
2000-2H-2x11 |
0.866(22.0) |
0.787(20.0) |
|
24 |
2000-2H-2x12 |
0.945(24.0) |
0.866(22.0) |
|
26 |
2000-2H-2x13 |
1.024(26.0) |
0.945(24.0) |
|
28 |
2000-2H-2x14 |
11.04((28.0) |
1.024(26.0) |
|
30 |
2000-2H-2x15 |
1.181(30.0) |
1.104(28.0) |
|
32 |
2000-2H-2x16 |
1.260(32.0) |
1.181(30.0) |
|
34 |
2000-2H-2x17 |
1.399(34.0) |
1.260(32.0) |
|
36 |
2000-2H-2x18 |
1.417(36.0) |
1.399(34.0) |
|
38 |
2000-2H-2x19 |
1.500(38.0) |
1.417(36.0) |
|
40 |
2000-2H-2x20 |
1.575(40.0) |
1.500(38.0) |
|
| Poles |
Part
No. |
Dimensions in.
(mm) |
| Top
Entry Type |
Side
Entry Type |
A |
B |
|
2 |
2000-WS-2 |
2000-WR-2 |
0.157(4.0) |
0.079(2.0) |
|
3 |
2000-WS-3 |
2000-WR-3 |
0.236(6.0) |
0.157(4.0) |
|
4 |
2000-WS-4 |
2000-WR-4 |
0.157(4.0) |
0.079(2.0) |
|
5 |
2000-WS-5 |
2000-WR-5 |
0.236(6.0) |
0.157(4.0) |
|
