SPECIFICATIONS:
- Poles:
2-20 (Single row)
4-40 (Double row)
- Voltage rating: AC 200V DC
- Current ration: AC,
DC, 2A
- Withstand voltage: AC
650V/min
- Insulation
resistance: 1000M
 min
- Temperature range:
-25~+85 oC
- Applicable PC board
thickness:
0.031"~ 0.063" (0.8-1.6mm)
- Contact resistance:
Initial value/10M max.
After environmental
- Testing/ 20M max.
|

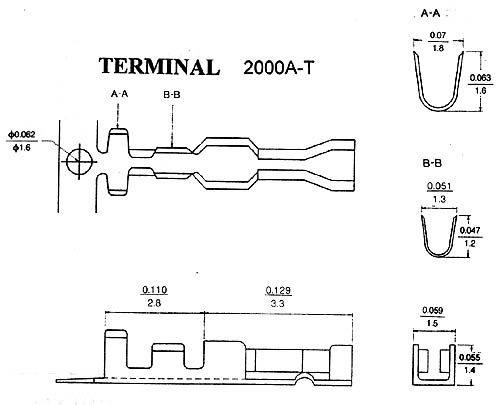

TERMINAL:
- Part No.:2000A-T
- Applicable wires: AWG#26-30
- Finish: Gold Flash (Gold in contact
area.)
- Material: Phos. Bronze (Brass)
- Hardness: SH
- Thickness: 0.2mm
- Q'ty: 10,000 pcs/roll
- Dimension
|

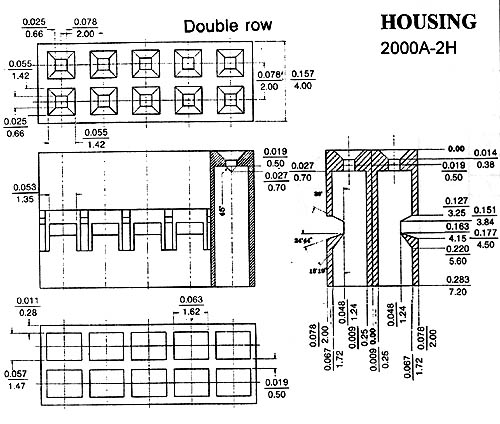

HOUSING:
- Part No.:2000A-1H, 2000A-2H
- Poles:
2-20 (Single
row)
4-40 (Double row)
- Material: Nylon UL94V-1
- Q'ty: 1000 pcs/roll
- Color: Black
- Dimension
|
WAFER:
- Part No.:
2508-WS (180o),
2508-WR(90o)
- Poles:
2-16, 18and 20
circuits
- Material:
Post: Brass, Tin/Plated
Base: Nylon 66, UL94V-0
- Q'ty:500,1000 pcs/roll
- Dimension
|

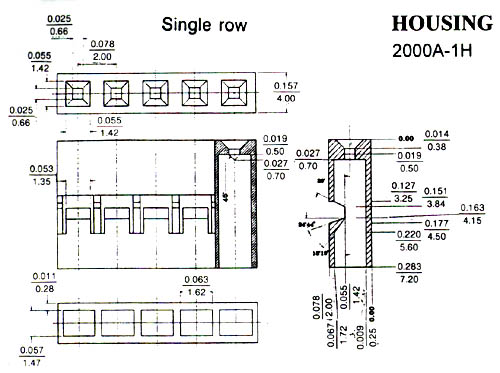

HOUSING:
| Poles |
Part
No. |
Dimensions in.
(mm) |
| A |
B |
|
2 |
2000A-1H-2 |
0.157(4.0) |
0.079(2.0) |
|
3 |
2000A-1H-3 |
0.236(6.0) |
0.157(4.0) |
|
4 |
2000A-1H-4 |
0.315(8.0) |
0.236(6.0) |
|
5 |
2000A-1H-5 |
0.394(10.0) |
0.315(8.0) |
|
6 |
2000A-1H-6 |
0.472(12.0) |
0.394(10.0) |
|
7 |
2000A-1H-7 |
0.551(14.0) |
0.472(12.0) |
|
8 |
2000A-1H-8 |
0.630(16.0) |
0.551(14.0) |
|
9 |
2000A-1H-9 |
0.709(18.0) |
0.630(16.0) |
|
10 |
2000A-1H-10 |
0.787(20.0) |
0.709(18.0) |
|
11 |
2000A-1H-11 |
0.866(22.0) |
0.787(20.0) |
|
12 |
2000A-1H-12 |
0.945(24.0) |
0.866(22.0) |
|
13 |
2000A-1H-13 |
1.024(26.0) |
0.945(24.0) |
|
14 |
2000A-1H-14 |
1.102(28.0) |
1.024(26.0) |
|
15 |
2000A-1H-15 |
1.181(30.0) |
1.102(28.0) |
|
16 |
2000A-1H-16 |
1.260(32.0) |
1.181(30.0) |
|
17 |
2000A-1H-17 |
1.399(34.0) |
1.260(32.0) |
|
18 |
2000A-1H-18 |
1.417(36.0) |
1.399(34.0) |
|
19 |
2000A-1H-19 |
1.496(3.0) |
1.417(36.0) |
|
20 |
2000A-1H-20 |
1.575(40.0) |
1.496(38.0) |
|
WAFER:
| Poles |
Part
No. |
Dimensions in.
(mm) |
| A |
B |
|
4 |
2000A-2H-2x2 |
0.157(4.0) |
0.079(2.0) |
|
6 |
2000A-2H-3x2 |
0.236(6.0) |
0.1574(4.0) |
|
8 |
2000A-2H-4x2 |
0.315(8.0) |
0.236(6.0) |
|
10 |
2000A-2H-5x2 |
0.394(10.0) |
0.315(8.0) |
|
12 |
2000A-2H-6x2 |
0.472(12.0) |
0.394(10.0) |
|
14 |
2000A-2H-7x2 |
0.551(14.0) |
0.472(12.0) |
|
16 |
2000A-2H-8x2 |
0.630(16.0) |
0.551(14.0) |
|
18 |
2000A-2H-9x2 |
0.709(18.0) |
0.630(16.0) |
|
20 |
2000A-2H-10x2 |
0.787(20.0) |
0.709(18.0) |
|
22 |
2000A-2H-11x2 |
0.866(22.0) |
0.787(20.0) |
|
24 |
2000A-2H-12x2 |
0.945(24.0) |
0.866(22.0) |
|
26 |
2000A-2H-13x2 |
1.024(26.0) |
0.945(24.0) |
|
28 |
2000A-2H-14x2 |
1.102(28.0) |
1.024(26.0) |
|
30 |
2000A-2H-15x2 |
1.181(30.0) |
1.102(28.0) |
|
32 |
2000A-2H-16x2 |
1.260(32.0) |
1.181(30.0) |
|
34 |
2000A-2H-17x2 |
1.399(34.0) |
1.260(32.0) |
|
36 |
2000A-2H-18x2 |
1.417(36.0) |
1.399(34.0) |
|
38 |
2000A-2H-19x2 |
1.496(38.0) |
1.417(36.0) |
|
40 |
2000A-2H-20x2 |
1.575(40.0) |
1.496(38.0) |
|
