SPECIFICATIONS:
- Voltage rating: AC 200V
DC
- Current ration: AC, DC,
2A
- Withstand voltage: AC
100V/min
- Insulation resistance: 1000M
 min
- Temperature range:
-25oC
~ +85oC

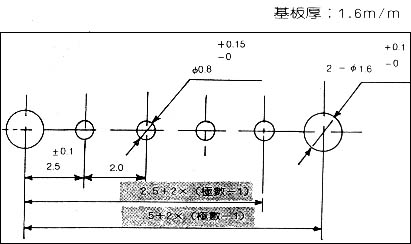

- Applicable PC board thickness:
0.031"~ 0.063" (0.8-1.6mm)
- Contact resistance:
Initial value/10M max.
After environmental
Testing/ 20M max.
- Material: Nylon 66,
UL94V-0
- Color: White
- Applicable Wire: AWG#24-26
|
| Poles |
Part No. |

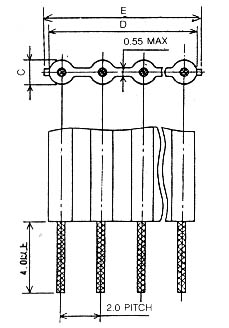

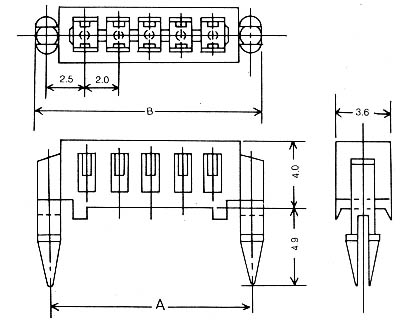

Dimensions
In. (mm) |
| A |
B |
C |
#24 |
#26 |
| #24 |
#26 |
D |
E |
D |
E |
| 2 |
ERS-C02 |
7.0 |
8.5 |
1.5~1.38 |
3.5 |
4.0 |
3.38 |
5.88 |
| 3 |
ERS-C03 |
9.0 |
10.5 |
5.5 |
6.0 |
5.38 |
7.88 |
| 4 |
ERS-C04 |
11.0 |
12.5 |
7.5 |
8.0 |
7.38 |
9.88 |
| 5 |
ERS-C05 |
13.0 |
14.5 |
9.5 |
10.0 |
9.38 |
11.88 |
| 6 |
ERS-C06 |
15.0 |
16.5 |
11.5 |
12.0 |
11.38 |
13.88 |
| 7 |
ERS-C07 |
17.0 |
18.5 |
13.5 |
14.0 |
13.38 |
15.88 |
| 8 |
ERS-C08 |
19.0 |
20.5 |
15.5 |
16.0 |
15.38 |
17.88 |
| 9 |
ERS-C09 |
21.0 |
22.5 |
17.5 |
18.0 |
17.38 |
19.88 |
| 10 |
ERS-C10 |
23.0 |
24.5 |
19.5 |
20.0 |
19.38 |
21.88 |
| 11 |
ERS-C11 |
25.0 |
26.5 |
21.5 |
22.0 |
21.38 |
23.88 |
| 12 |
ERS-C12 |
27.0 |
28.5 |
23.5 |
24.0 |
23.38 |
25.88 |
|
