0.098" (2.50mm) Pitch Dip Socket

SPECIFICATIONS:
  • Sizes 2 to 20 circuits
  • Accepts topcoated ribbon cable or discreate wire
  • Wire range: 24 to 26 AWG
  • Insulation diameter: 1.20 to 1.60mm
  • Strip length: 4.00mm
  • Packaging: Bag
  • Designed in: mm
  • Housing: Nylon 66, UL94V-0

　
Poles Part No.

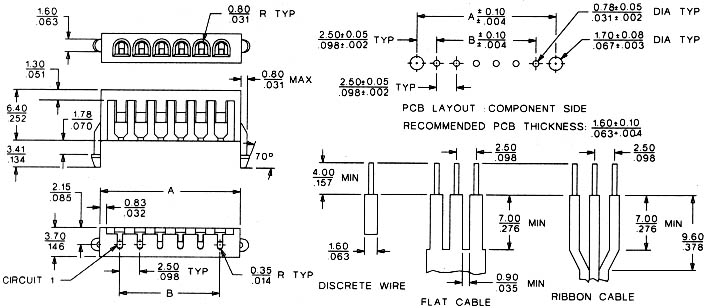

Dimensions In. (mm)

 MATERIAL
A B
2 ERS-D02 0.295(7.50) 0.098(2.50) Nylon 66

UL94V-0
3 ERS-D03 0.394(10.00) 0.197(5.00)
4 ERS-D04 0.492(12.50) 0.295(7.50)
5 ERS-D05 0.591(15.00) 0.394(10.00)
6 ERS-D06 0.689(17.50) 0.492(12.50)
7 ERS-D07 0.787(20.00) 0.591(15.00)
8 ERS-D08 0.886(22.50) 0.689(17.50)
9 ERS-D09 0.984(25.00) 0.787(20.00)
10 ERS-D10 1.083(27.50) 0.886(22.50)
11 ERS-D11 1.181(30.00) 0.984(25.00)
12 ERS-D12 1.280(32.50) 1.083(27.50)
13 ERS-D13 1.378(35.00) 1.181(30.00)
14 ERS-D14 1.476(37.50) 1.280(32.50)
15 ERS-D15 1.575(40.00) 1.678(35.00)
16 ERS-D16 1.673(42.50) 1.476(37.50)
17 ERS-D17 1.772(45.00) 1.575(40.00)
18 ERS-D18 1.870(47.50) 1.673(42.50)
19 ERS-D19 1.969(50.00) 1.772(45.00)
20 ERS-D20 2.067(52.50) 1.870(47.50)
