0.05" (1.25mm) Mini-Crimp Series

SPECIFICATIONS:
  • Poles: 20 25 30
  • Voltage rating: AC 250V DC
  • Current ration: AC, DC, 1A
  • Withstand voltage: AC 500V/min
  • Insulation resistance: 1000M min
  • Temperature range: -25~+85 oC
  • Applicable PC board thickness:
     0.031"~ 0.063" (0.8-1.6mm)
  • Contact resistance:
    Initial value/10M     max.
    After environmental
  • Testing/ 30M max.
 TERMINAL:

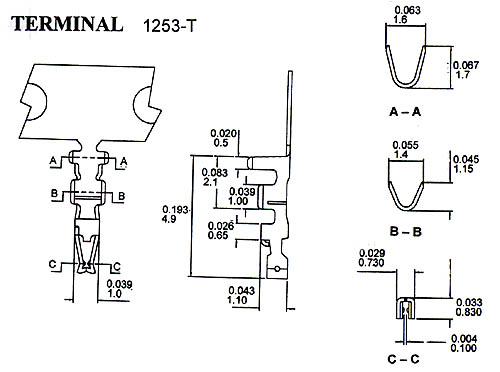

  • Part No.:1253-T
  • Applicable wires: AWG#26-30
  • Finish: Tin/Plated
  • Material: Phos. Bronze
  • Hardness: SH
  • Thickness: 0.15mm
  • Q'ty: 10,000 pcs/roll
  • Dimension
 HOUSING:

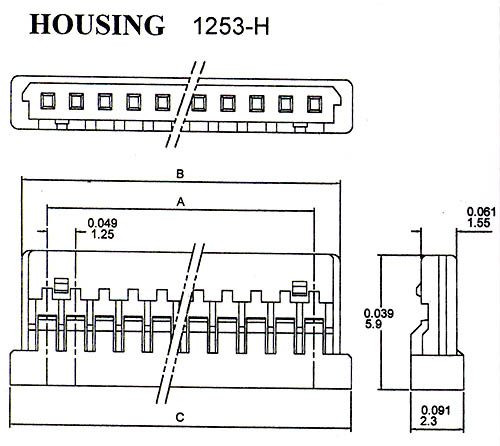

  • Part No.:1253-H
  • Poles: 20 25 30
  • Material: Nylon, UL94V-0
  • Dimension
WAFER:

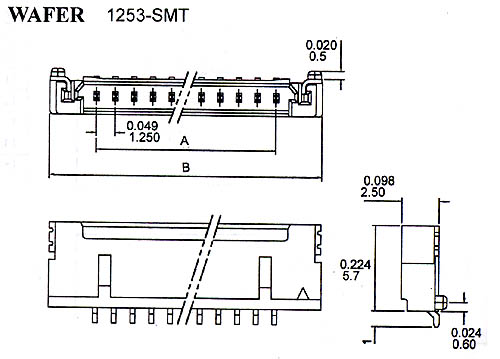

  • Part No.:1253-SMT
  • Poles: 20 25 30
  • Material:
    Post: Brass, Tin/Plated
    Base: Nylon 66, UL94V-0
  • Q'ty: 1000 pcs/roll
  • Dimension
HOUSING:
Poles Part No.

Dimensions in. (mm)

Material
A B

C
20

1253-H-20

0.935(23.75)

1.026(26.05)

1.063(27.00)

Nylon 66
UL94V-0
25

1253-H-25

1.181(30.00)

1.272(32.30)

1.309(33.25)
30

1253-H-30

1.427(36.25)

1.518(38.55)

1.555(39.50)
WAFER:
Poles Part No.

Dimensions in. (mm)

Material
A B C
20

1253-SMT-20

0.935(23.75)

1.181(30.00)

1.410(28.95)

 Post: Brass
Tin/Plated
Base: Nylon 66
UL94V-0
25

1253-SMT-25

1.181(30.00)

1.427(36.25)

1.386(35.20)
30

1253-SMT-30

1.427(36.25)

1.673(42.50)

1.632(41.45)
