Multi-function Hubs

  • USB host to device communication
  • PnP for easy installation.
  • Compliant USB specification version 1.1
  • Designed for Windows 98 and 95 OSR 2.1 (and higher)
  • For VGA and SVGA monitor, bandwidth 100MHz
  • Over current detection and protection on every downstream port

Item No.
UAP-100
UPM-100
USP-100
U&V-100
Chipset
TI
Philips
Ports Upstream
1
Downstream
4
Devices
Audio/Printer
Audio/Mic/Printer
Modem/Printer
Monitor
Power Mode
Self
Output Current
500mA (max.) per port
Housing
Plastic
Dimension
123x86x30mm



UAP-100

UPM-100



UAP-100

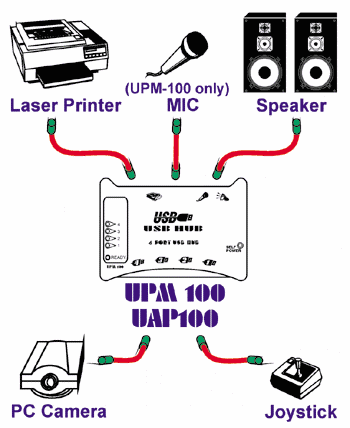

4 Downstream ports + DAC + USB IEEE-1284 Bridge

UPM-100

4 Downstream ports + DAC + Microphone + USB IEEE-1284 Bridge







USP-100



USP-100

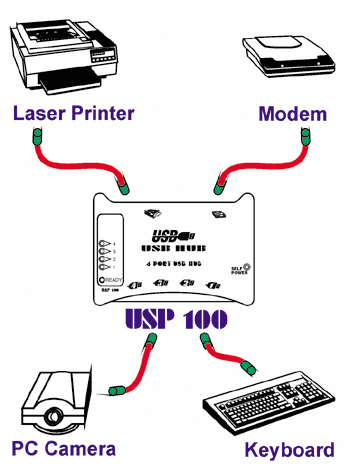

4 Downstream ports +USB to Modem + USB IEEE-1284 Bridge



U&V-100



U&V-100

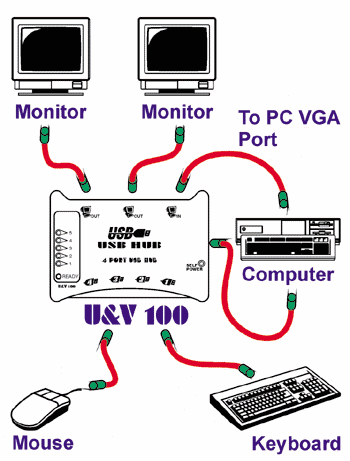

4 Downstream ports + 2 ports VGA splitter
